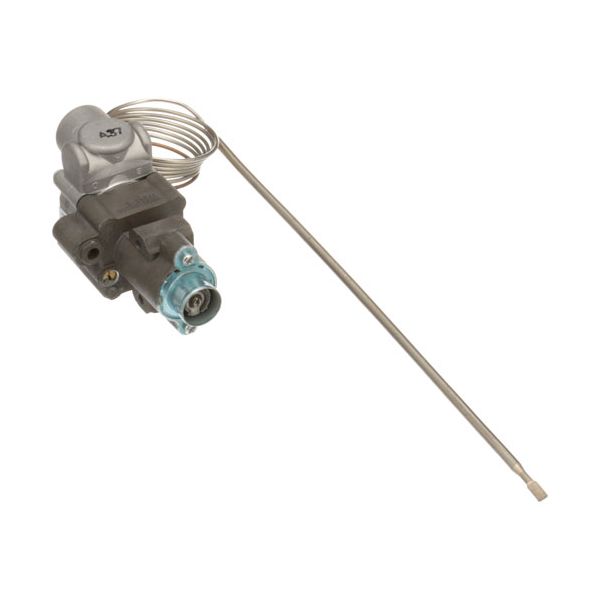

Hobart 719298 Thermostat BJWA 3"/16" X 11" 36"
Special Price CAD$444.41 Regular Price CAD$619.57
In stock
SKU
719298
Manufacturer:
The Hobart 719298 Thermostat is a mechanical temperature control system that can be used for heating cycles in commercial equipment. It has a BJWA design having a 3/16-inch diameter sensing bulb, an 11-inch length of the bulb, a 36-inch capillary tube, and electrical contact terminals that are compatible with specific units. This is fitted in the control panel and the sensing bulb is fitted in the heated space. It reacts to variations in temperature by closing or opening contacts. The component is integrated with wiring systems in the system, and it is mounted with mounting provisions as well as controlled temperature regulation during operation.
Dimensions
- Length: 11 In
- Width: 2.5 In
- Height: 6 In
- Weight: 1 lbs
Product Notes
- Viewed From Rear: See "Bj Outlet Positions"
- W/ By-Pass Adj At Top & Gas Inlet Down
- [ Type - Bjwa ] [ Temp 250-500 ] [ Bulb 3/16" X 11" ]
- [ Cap 36" ] [ Out "C" 1/4" Fpt Rear ], Rotation 90 Cw, ]
- [ Wide Flange Body ] No Pilot.
- Wolf Knob # # 22-1208 Bj T'Stat Knob, [ 2" Dia ]
- [ Off-Low-500] [Mount 11/16" Dia.]
- [Position Up], 3/4" Protrusion On Back Of Knob.
- [ Gen Use Dial # 22-1029 Off-Low-250-500,
- Includes Adaptor: # 26-1197]
- Wolf Oven Ch, Chss.
