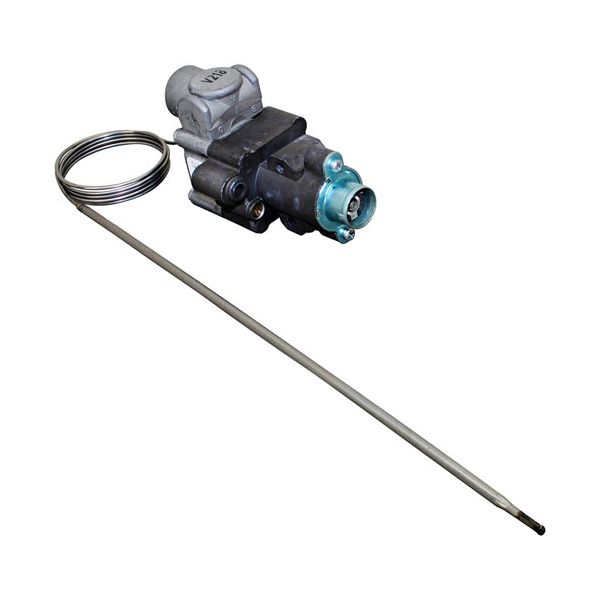

Southbend B940000201 BJWA Thermostat W/3/16" X 12" Blub 36" Cap & Stem
Special Price CAD$560.68 Regular Price CAD$1,123.99
In stock
SKU
B940000201
Manufacturer:
The Southbend B940000201 BJWA Thermostat With 3/16 In x 12 In Bulb, 36 In Cap / Stem is a temperature controller element that is part of Southbend compatible commercial cooking equipment. The inner operating temperature with the help of the bulb and adjusts the amount of heat produced by the control circuit when necessary. The thermostat is an appliance control system that is used in burners or heating elements to keep to desired temperatures. It is usually found in restaurant kitchens and service to provide a proper temperature control and accurate functionality of the appliances.
Dimensions
- Length: 12.5 In
- Width: 6.7 In
- Height: 2 In
- Weight: 1.02 lbs
Product Notes
- Viewed From Rear:See Addl Image "Outlet Positions"
- Temp Low-150-500, Bulb 3/16" X 12", Cap 36", Out 7/16" Cct
- "C" Rear, Rotation 90 Cw
- For 300 & 400 Series Use Dial # 22-1381 W/ 1-3/8"
- Stem. Southbend Oven Series: 400 After 10/97. Series: 300
- 1/88 & After. (Units Prior To 1/88 Use Type Bjfma T'Stat
- # 46-1048 W/[Pilot Fitting )
- Dial To Use # 22-1210 Off-Low-250-500
- ***461285 Is Thermostat Only.
- If Southbend B94-00002-01 Kit Is Needed, Use Ap# 8013586.
- If Southbend B94-00001-01 Kit Is Needed, Use Ap# 8013587
- ***
