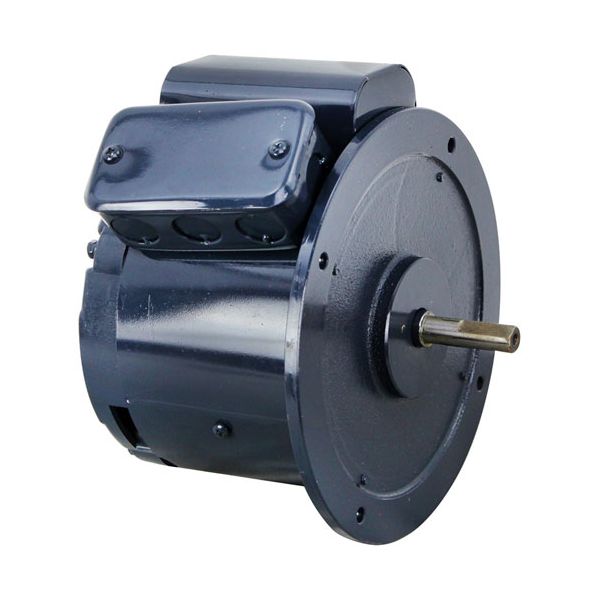

Vulcan Hart 00-715107-00002 Gas Broiler Blower Motor 1/4HP 1725 RPM 1PH 115V
Special Price CAD$426.98 Regular Price CAD$532.74
In stock
SKU
00-715107-00002
The Vulcan Hart 00-715107-00002 Blower motor operates by forcing air into the broiler system and circulating it over the burners to ensure uniform burning. It operates on a 1/4 HP motor at 1725 RPM with a single phase 115V power supply to maintain constant air flow to provide maximum broiling. It fits directly into the broiler assembly and is designed to direct air over the burner area to keep the system flowing. It can easily be installed in commercial broilers and with its design, it allows even heat distribution across the cooking surface whilst fitting into the existing mounting configuration so that it can be easily replaced.
Manufacturer:
Dimensions
- Length: 9 In
- Width: 8 In
- Height: 9.5 In
- Weight: 19.2 lbs
Product Notes
- [ 115V, ] [ 1/4Hp,] [1P ] [1725 RPM ][4.4Amp ][Cw Rotat.]
- [1/2" X 1-3/4" Shaft ] Approx 8" Dia Face,
- 7-1/8" Mount Centers
- Imperial & Wolf Wheel # 26-1470 (8-1/16")
- Us Range & Vulcan Wheel # 26-1471 (7-1/8")
- American Range Oven Ar24, Ar-C
- Hobart Oven
- Imperial Oven Series: Ir W/Convection Oven.
- Us Range Oven Series 836 Cuisine, Performer Ii
- Vulcan Oven 24L, 36(L,Lc), 48L, 60(L,Lc,Lcc), 148(L,Lc),
- 160(L,Lc), 260(L,Lc,Lcc), 481(L,Lc), H56C, Mg12
- Series: 141, 241, Sg77. Series Gh, Ghm, Ghx, Vg.
- Wolf Series Fk, All Commander/Challenger Snorkler Unis
- With Convection Ovens. Kf, Kfs
