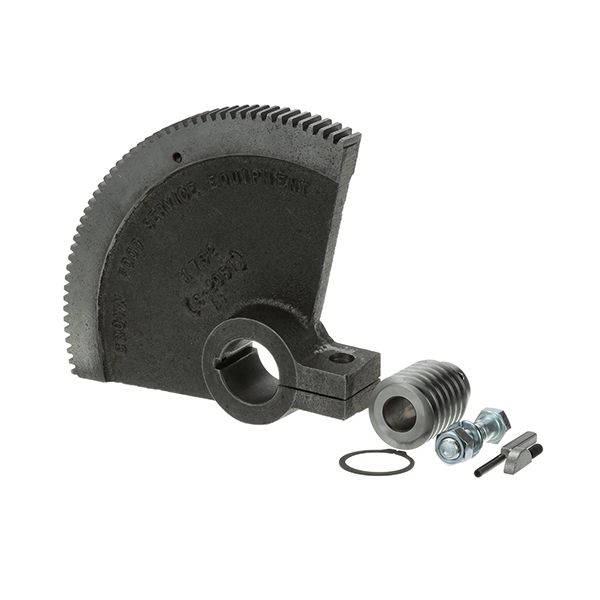

Groen CROWN-5393-1 Gear Worm Replacement Kit

During routine kettle service, inspect the worm and gear for wear, lubrication status, and any metal shavings. Replace the kit if you notice excessive backlash or gear teeth degradation.

• Disconnect power and secure the kettle in the upright position.
• Remove the access cover to expose the tilt drive assembly (worm shaft and gear).
• Unbolt and carefully remove the old worm and segment gear components.
• Clean the mounting area and apply food-safe grease to the new worm and gear.
• Align and install the new worm on the drive shaft, then mount the new segment gear in its proper orientation.
• Torque fasteners to the manufacturer’s spec, reassemble the cover, restore power, and run a test tilt cycle to ensure smooth operation.

Typical problems include worn or stripped teeth, increased backlash or play, and noisy or jerky kettle tilt due to misalignment or poor lubrication.

The kit is designed for tilting kettles with a worm-drive assembly enclosed in a steam-rated housing; it must tolerate repeated steam exposure and high-torque tilting motions.
