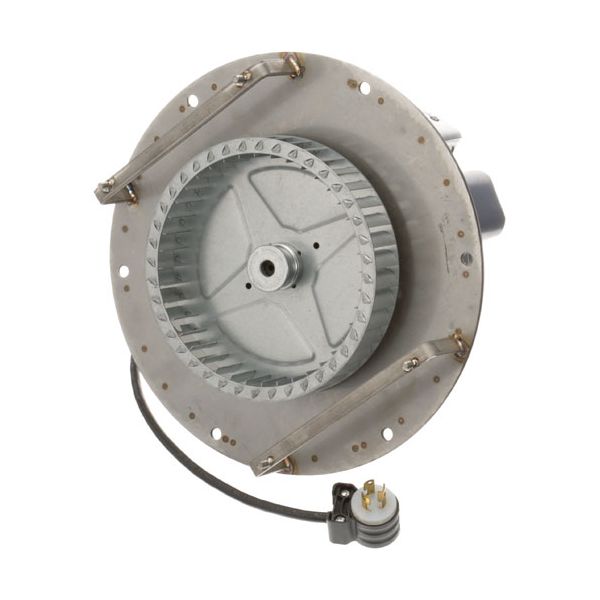

Jade Range 3098701V Oven 1/4HP Motor 1725 RPM 115V/1PH

1 Review Add Your Review

Special Price CAD$3,758.26 Regular Price CAD$4,512.62

In stock

SKU

3098701V

Categories: Electrical & Hardware, Motors & Pumps,

Manufacturer:

Jade Range

Jade Range 3098701V 1/4HP Motor is a 115V 1/4 horsepower single phase motor for the efficient operation of the oven. It provides reliable performance for commercial kitchen equipment such as Jade ovens JSR, JTRH, JSLB models at a speed of 1725 RPM. It is a clockwise motor with a 1/2" shaft for smooth power transmission. The durable construction contributes to reduced time down as well as improved oven functionality. This motor is ideal for ovens in heavy use cooking environments, providing both efficiency and longevity for this easy to replace, high performance, motor component.

Dimensions

Length: 14.5 In
Width: 14.5 In
Height: 13 In
Weight: 20.2 lbs

Product Notes

Jade Changed To Howell Motor Aug 06
[ 115V ] [ 1/4Hp ] [1Ph ] [1725Sp ] [4.4/1.0A ]
[Cw Rotation ] [ 1/2" Shaft ]
Motor Only = Ap# 8010454
Blower Wheel A3006. Mb-155, # 26-2344
Jade Oven Jsr,Jtrh,Jslb

Reviews 1

Write Your Own Review

FAQS

Customer Questions

What maintenance is required for the Jade Range 3098701V Motor?

Check regularly for grease buildup on the motor housing and blower wheel, and inspect bearings for noise or play. Lubricate or replace if you detect vibration, grinding, or overheating during operation.

How do I install the Jade Range 3098701V Motor?

Disconnect power to the oven and allow it to cool. Remove the access panel on the convection blower compartment. Disconnect the wiring from the old motor. Unscrew and remove the old motor and blower wheel. Mount the new motor in the same orientation, secure with screws, and reinstall the blower wheel. Reconnect wiring, ensure secure terminals, replace the access panel, restore power, and cycle the oven to verify proper airflow and quiet operation.

What are common issues with the Jade Range 3098701V Motor?

Common problems include worn bearings causing noise, poor airflow if the blower wheel is misaligned, and reduced motor speed or burnout from overheating.

Which Jade Range models are compatible with the Jade Range 3098701V Motor?

It is used in Jade’s JTRH-36HT, JTRH-48GT-36C, and JTRH-6 oven ranges
