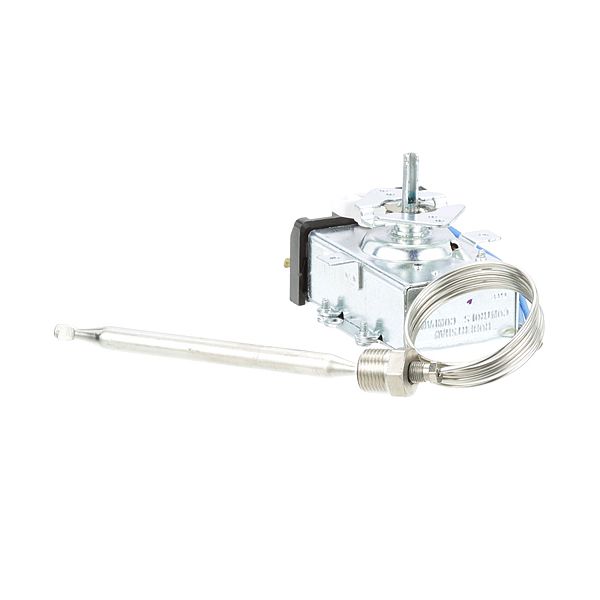

Hubbell P59060 Thermostat
Special Price CAD$267.87 Regular Price CAD$375.69
Out of stock
SKU
P59060
The Hubbell P59060 Thermostat is a high current part that performs efficiently in a variety of applications. The dual-pole double-throw thermostat comes with a 3/8" x 4-1/2" durable bulb and a 48" cap which enables precise temperature control across different environments and that functions between 100°F to 250°F. With its capacity to manage heavy electrical loads of 30 amps at 120/277V per pole this partproves suitable for challenging operating conditions. The front ears on the thermostat simplify mounting while the partworks with pilot light #38-1068 to improveoperational capabilities. The applications needing dependable temperature control operate for optimal performance and safety within improve kitchens along with industrial environments.
Manufacturer:
Dimensions
- Length: 7 In
- Width: 3 In
- Height: 3.5 In
- Weight: 1 lbs
Product Notes
- [ Type - D1/D18 ] Temp 100-250 ] Bulb 3/8" X 4-1/2" ]
- [ Cap 48" ] [ 3/8" Mpt Stuff Box ] [ Mount Front Ears ]
- [ Pilot Light #38-1068 ]
- ***If Dial Is Needed, You Can Use Ap# 221465 (Off-10-1) Or
- Ap# 221003 (Off-250-60). Oem Now Nla. If Bezel Needed,
- Use Ap# 264088***
- D1'D18 T'Stat, Dpst For Ac Operation, 4 Terminal
- Used In Applications Requiring High Current.
- 10 Amp 480V Per Pole Resistive Load
- 21 Amp 480V 2 Poles Resistive Load
- 30 Amp 120/277V Per Pole Resistive Load
- 7.2 Full Load Amp 120-277V & 42 Lra 120-277V
- 250Va 120-277V (Pilot Duty)
