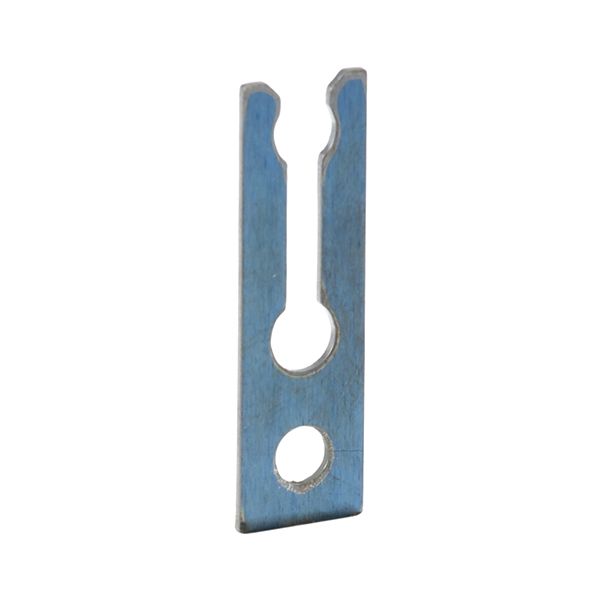

Vulcan Hart 00-413302-00001 Gas Range Pilot mounting Clip
CAD$24.71
In stock
SKU
00-413302-00001
The Vulcan Hart 00-413302-00001 Gas Range Pilot Mounting Clip is a replacement part that is used in a compatible commercial unit. This works to hold the pilot assembly in the right place in reference to the burner system to ensure that ignition performance is stable in normal operation. When used in a restaurant and foodservice setting, it is mounted close to the burner where the pilot tube or flame sensor is mounted in such a way that it ignites and senses flames consistently. It aids in combustion by ensuring that it is aligned during use and maintenance processes.
Manufacturer:
Dimensions
- Length: 1.75 In
- Width: 0.5 In
- Height: 0.1 In
- Weight: 0.1 lbs
Product Notes
- Pilot Mounting Clip, Used On Cast Iron Burner Assembly.
- Clip Mounts To Burner And Pilot Tube Head Snaps Into Clip.
- Vulcan Range 12 Open Top, 148L, 148Lc, 160L, 160L77R,
- 160Lc,24 Griddle, 24L, 260L, 260Lc, 260Lcc, 36 Griddle,
- 36Fl77R,36L, 36L77R, 36Lc, 481L, 481Lc, 48L, 60Fl77R, 60L,
- 60L77R,60Lc, 60Lcc, Eg160, Eg24, Eg260, Eg36, Eg60, G36F,
- G36S,G36X, G48F, G60F, G60X, Mg12
