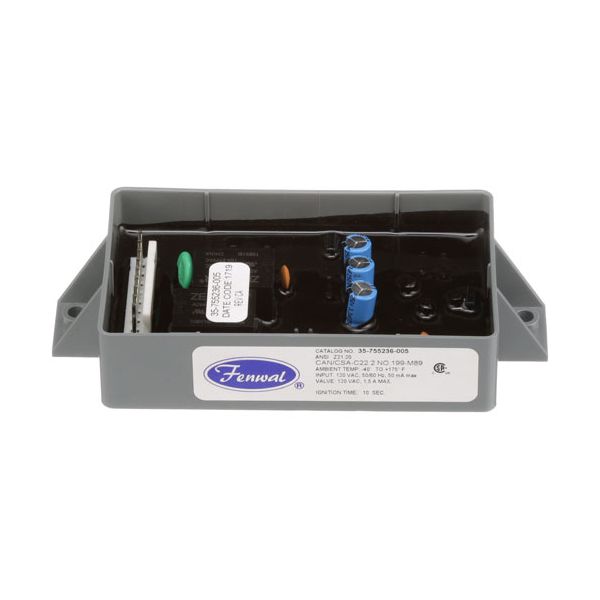

Southbend SOU1190642 Range Ignition Module 120 VAC 50/60Hz
Special Price CAD$595.77 Regular Price CAD$1,015.17
In stock
SKU
SOU1190642
Manufacturer:
The Southbend SOU1190642 120 VAC 50/60Hz Range Ignition Module is a replacement part of the control of compatible commercial appliances. It controls the ignition sequence by providing high voltage spark output at the right time to start-up gas burners. It is installed in the control system of the range and connected to power input and ignition electrodes to control the secure burner lighting in response to user demand or thermostat demand. In commercial kitchens, such as restaurants and food service facilities, it is substituted during service when ignition operates arise or burners do not start, module accurately works as an ignition and security system of the appliance.
Dimensions
- Length: 6 In
- Width: 4 In
- Height: 1.75 In
- Weight: 0.65 lbs
Product Notes
- Ignition Module,Oven Broiler. Ignition Time 10 Sec.
- Ambient Temp: -40° To +175°F. Input 120 Vac 50/60Hz
- 50Ma Max
- Fits Southbend Models~
- 400 Series, H4361A, H4361A-1G, H4361A-2G-T, H4361D,
- H4361D-1G, H4361D-2G-T, H4362A, H4362D, H4363A, H4363D,
- H4364A, H4364D, H4365A, H4365D, H4366A, H4366D, H4367A,
- H4367D, H436A-3G-T, H436D-3G-T, Southbend Range, Tvgs/12Wc,
- Tvgs/12Wc With P36N-Ttt
