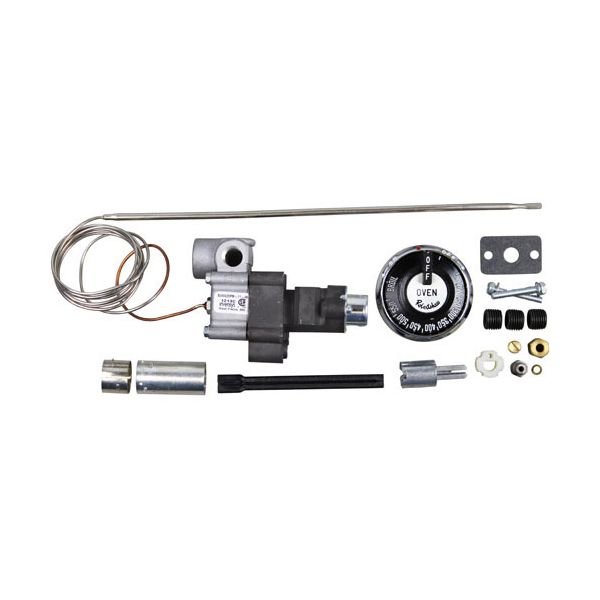

Garland 227054 Thermostat BJWA 3/16" X 11-5/8" Capillary 48"
Special Price CAD$298.29 Regular Price CAD$476.94
In stock
SKU
227054
The Garland 227054 Thermostat BJWA is an essential temperature control system that is used to provide the better cooking results in commercial ranges and ovens. It is constructed using a 3/16" sensing bulb of 11-5/8" length and 48" capillary to provide accuracy control of oven temperatures to ensure uniform results. The thermostat operates by detecting the heat with the bulb, and passing the temperature variations through the capillary to the control mechanism, which in turn adjusts the heating elements or the flow of the gas.
Manufacturer:
Dimensions
- Length: 13.75 In
- Width: 4.25 In
- Height: 3.5 In
- Weight: 1.3 lbs
Product Notes
- Viewed From Rear:See Addl Image "Outlet Positions"
- [ Bjwa Kit W/ 3/16" Cct Pilot [ Temp 250-550 ] [ Bulb
- 3/16" X 11-5/8" ] [ Cap 48" ] [ Out 1/4" Fpt "A,B,C,D,"]
- [ Rotation 0 Degrees ] [ Includes Dial & Bezel, Stem
- Adapters, Gasket, Screws ] Wide Flange.
- Black Dial W/ Adapter = # 22-1028 ]
- Franklin Chef Oven Gr(10,11,12,13,14,16-0,17,22,
- 410,415,416,426).
- Series: Gra & Grax & Grc With S/N 1000000 To 1008568
- &1017255 & After.
- Montague Chinese Bbq Oven 28Cbsf, Montague Ii "R".
- Us Range Oven Series Performer Ii
- Vulcan/Wolf Oven Series: 59, 64.(70 After 11/74).
