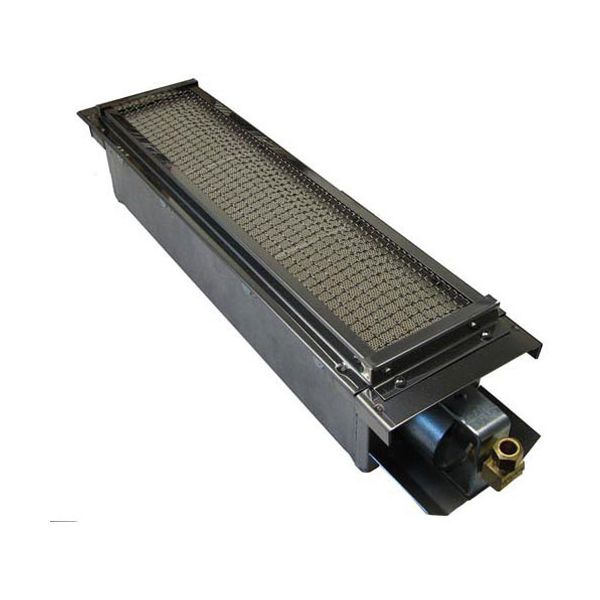

Montague 01217-9 Infrared Burner 5" X 18 3/4"
Special Price CAD$470.77 Regular Price CAD$861.94
In stock
SKU
01217-9
Manufacturer:
The Montague 01217-9 Infrared Burner 5" X 18 3/4" is an infrared burner that produces heat by burning gas through a wire mesh screen in the burner unit. It operates by evenly spreading gas in the burner body, where it is ignited to generate radiant heat along the mesh screen. The assembly is linked to the mounting points of the internal gas manifold and burner in the unit. It is applied in commercial foodservice cooking appliances where infrared burners provide concentrated radiant heat to be used in broiling and cooking.
Dimensions
- Length: 20 In
- Width: 5 In
- Height: 3.5 In
- Weight: 8.1 lbs
Product Notes
- Infrared Burner, W/ Wire Mesh Screen.
- 5" X 18-7/8" Od , 4" X 16-5/16" Burner,
- Overall Length 19-3/4" Including Venturi, 4" X 16-1/4" Box
- Only, Orifice Holder 3/8Cct X #48 Orifice Hole- Threaded
- Into Bracket On Burner, 17,000 Btu (For Nat Gas Only) For
- Lp, Model Of Unit Is Needed In Order To Determine Orifice
- Size.
- Garland Broiler Ircm-24
- Imperial Broiler Icma/Icfb(Old Style)
- Montague Cheesemelter Series Mcm 24-72
- Us Range Roiler/Cheesemelter Irc96A,
- Icma(24,48,72,96,120,144).
