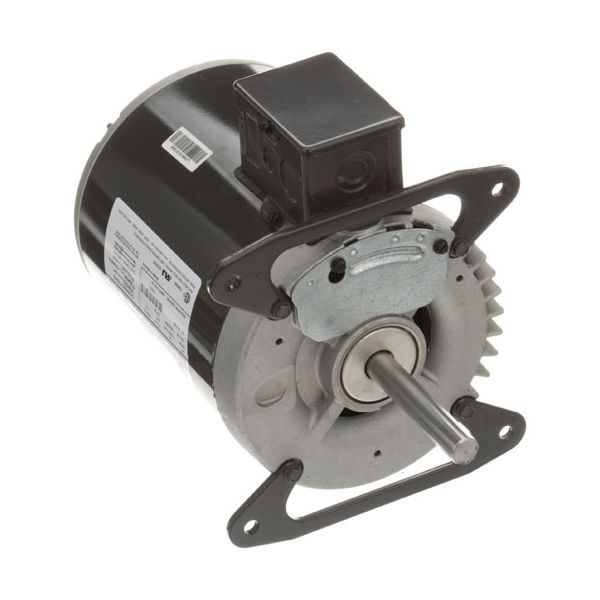

Duke 153034SED Convection Oven 2-Speed Motor 1/2-1/4HP 200-240V 50/60Hz
Special Price CAD$727.84 Regular Price CAD$1,297.88
In stock
SKU
153034SED
Manufacturer:
The Duke 153034SED 2-Speed Motor is a two-output drive unit that is used in equipment. This motor has a half and quarter horsepower operating rate with a selectable speed performance to suit the different operational requirements. It can be used with a power supply of 200 to 240 volts at 50 or 60 hertz and can be installed flexibly in a wide variety of electrical systems. It is designed to fit factory requirements and is clamped into the frame and terminal connections. Fitting this motor will provide adjustable rotational functionality and provide consistent equipment operation in commercial settings.
Dimensions
- Length: 16 In
- Width: 8 In
- Height: 10 In
- Weight: 25.5 lbs
Product Notes
- [ 200-240V, ] [ 1/2-1/4 Hp,][ 50/60 Hz ] [1Ph ] 2 Speed.
- [1725/1140 RPM ] [3.5-4.0/1.5-1.8 A ] [Cw/Reversible
- Rotation ] [3-1/2" X 5/8" Shaft W/ 2 Flats ]
- If Using An Emerson Motor On A Garland Oven, The Two
- Gray Wires May Not Be Needed. Cap Them Individually With
- Wire Nuts. Ground Wire To Motor Case May Need To Be
- Added.
- For Garland Oem Motor 168702 Use #68-1259
- Blower Wheel 9-7/8" Dia X 2-1/2" Deep X 5/8" Bore # 26-1328
- Or Gen Use Blower Wheel 10" Dia. X 2" Deep X 5/8" Bore,
- # 26-4052
- Duke Oven Series: E
