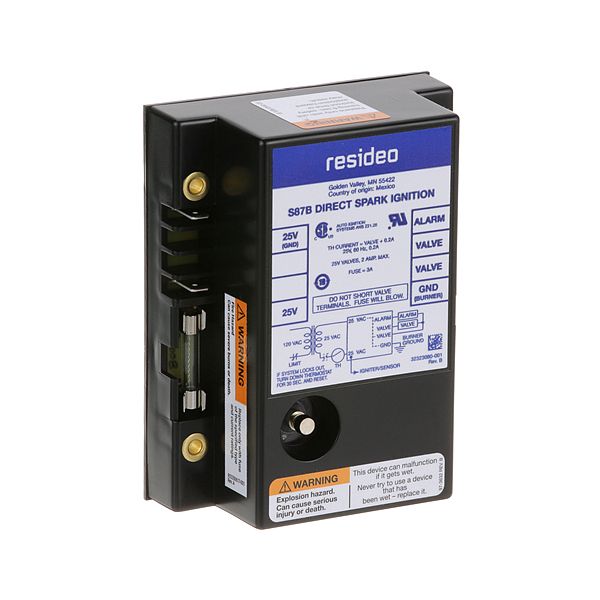

Ultrafryer 18-179 Module Ignition 6-Second 25V
Special Price CAD$498.07 Regular Price CAD$694.38
Out of stock
SKU
18-179
Manufacturer:
The Ultrafryer 18-179 Module Ignition 6-Second 25V is an ignition control unit that starts and controls burner start-up by a timed electrical ignition sequence control, which receives main control board start signals. It provides a controlled 25V signal to the circuit, timing the spark activation and flame detection in a six-second cycle and the ignition timing feedback in the cycle to coordinate attempts should they be necessary. It is mounted in commercial cooking equipment control compartments to assist in the ignition system and connected to wiring harness connections to ignition modules.
Dimensions
- Length: 5 In
- Width: 4.5 In
- Height: 2 In
- Weight: 0.695 lbs
Product Notes
- Color: Gray
- Material: Plastic
- Width: 4" | 102 mm
- Height: 5 3/16" | 132 mm
- Voltage: 25 V Ac
- Amp: 0.2
- Terminals: 1/4" Tab Terminals
- Type: 6 Seconds Lockout And Trial
- Depth: 2" | 51 mm
- Screw Centers: 3 5/16" | 84 mm
