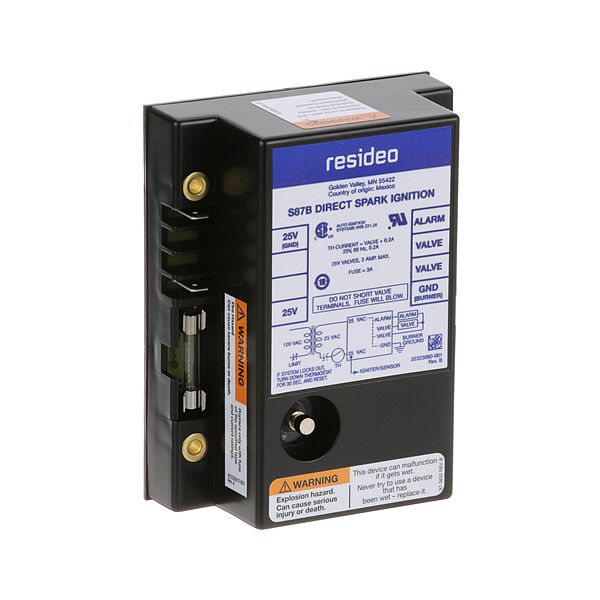

Ultrafryer ULTR18179 Module Ignition 6-Second 25V
Special Price CAD$498.07 Regular Price CAD$694.38
Out of stock
SKU
ULTR18179
Manufacturer:
The Ultrafryer ULTR18179 Module Ignition 6-Second 25V is a module that provides ignition control by providing a timed 25-volt signal to trigger the ignition sequence in compatible cooking equipment, synchronizing start-up electrical pulses and a controlled firing sequence using an internal timing circuit. It controls the ignition cycle and regulates the timing interval to synchronize the start of the spark or flame and system response and coordinates sequence timing signals and maintains a steady progression of the cycle between ignition stages, it is mounted in the control assembly panel.
Dimensions
- Length: 5 In
- Width: 4.5 In
- Height: 2 In
- Weight: 0.695 lbs
Product Notes
- Color: Gray
- Material: Plastic
- Width: 4" | 102 mm
- Height: 5 3/16" | 132 mm
- Voltage: 25 V Ac
- Amp: 0.2
- Terminals: 1/4" Tab Terminals
- Type: 6 Seconds Lockout And Trial
- Depth: 2" | 51 mm
- Screw Centers: 3 5/16" | 84 mm
