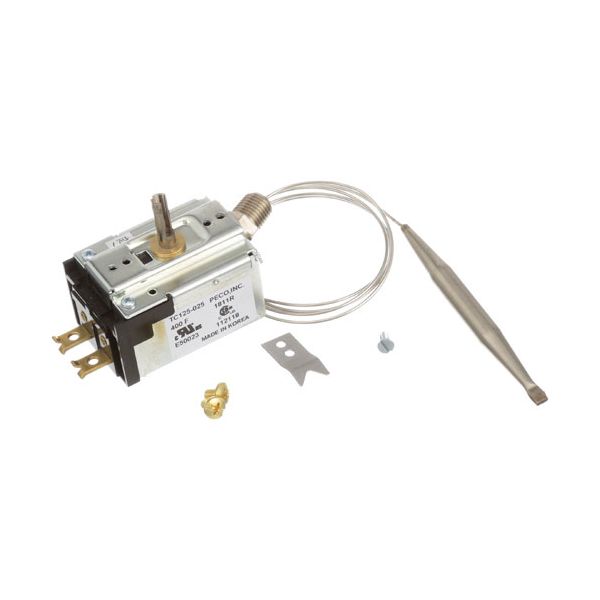

Dean 807-3515 Thermostat 200°F-400°F 36" CAP
Special Price CAD$119.17 Regular Price CAD$220.71
Out of stock
SKU
807-3515
Manufacturer:
The Dean 807-3515 Thermostat 200°F-400°F 36" capillary is a temperature sensory control unit that is used to measure and control the temperature in a system. It operates by sensing the temperature variation by use of the sensing element and activating an internal switch to sustain set conditions when operating. This thermostat will be used in those areas where a tight temperature control is needed and the sensing zone is accessible by the capillary. The purpose of its general assembly is to assist the assembly in maintaining a constant temperature, facilitate the prevention of overheating or underheating, and permit an average and regular operation.
Dimensions
- Length: 5.75 In
- Width: 2 In
- Height: 2.375 In
- Weight: 0.48 lbs
Product Notes
- [ Peco Type - Tc125 ] [ Temp 200-400 ]
- [ Bulb 3/8" X 3-1/2"] [ Cap 36" ] [ 1/4" Stuff Box ]
- [ Dial To Use # 22-1006 Off-400-200, 4-Way ]
- Garland Dial To Use # 22-1027, [Off-400-200] [Mount .187"]
- [Flat Down ]
- Tri-Star Fryer Tsf-3540, Tsf-4050, Tsf-6575
- This Thermostat Is Used By Frymaster And Comes
- With A Clip To Keep The Temperature From Moving Up, Due
- To Dial Being Bumped. The Clip Puts Pressure On The Shaft
- Of The Thermostat.
- Imperial Has Used This Thermostat In The Past. They May
- Also Use The Robertshaw Equivalent # 46-1272.
