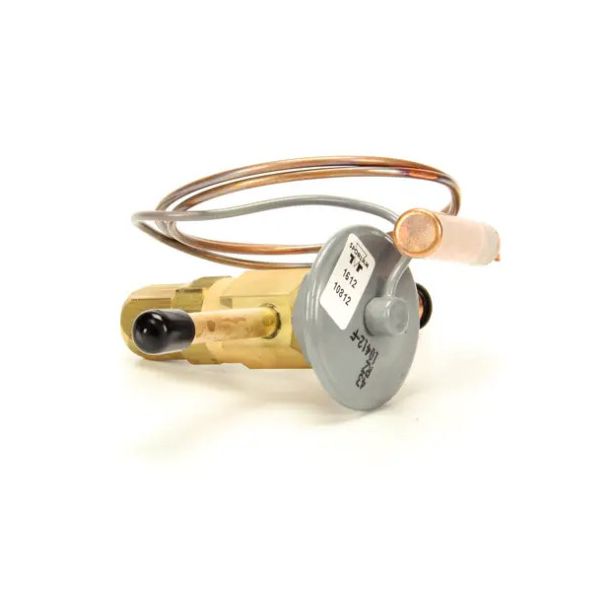

Sporlan FBS-1/4-Z Valve TXV R404A 1/4" X 3/8" ODF
CAD$609.20
In stock
SKU
FBS-1/4-Z
Manufacturer:
The Sporlan FBS-1/4-Z Valve TXV R404A 1/4" X 3/8" ODF meters are temperature and pressure-responsive to direct the flow into the evaporator. It is compatible with R404A and has 1/4 inlet and 3/8 outlet ODF connections that are internally calibrated. It installed in the liquid line and it is connected upstream of the evaporator and downstream of the condenser. The valve regulate the amount of fluid flowing into the evaporator to ensure balance in the system. Its elements and internal mechanism control flow based on the operating conditions, which is necessary to provide distribution.
Dimensions
- Length: 5 In
- Width: 5 In
- Height: 3 In
- Weight: 0.97 lbs
Product Notes
- Material: Brass
- Length: 30" Capillary
- Type: Internal Equalizer | R404 Refrigerant
- Inlet: 1/4" Odf
- Outlet: 3/8" Odf
