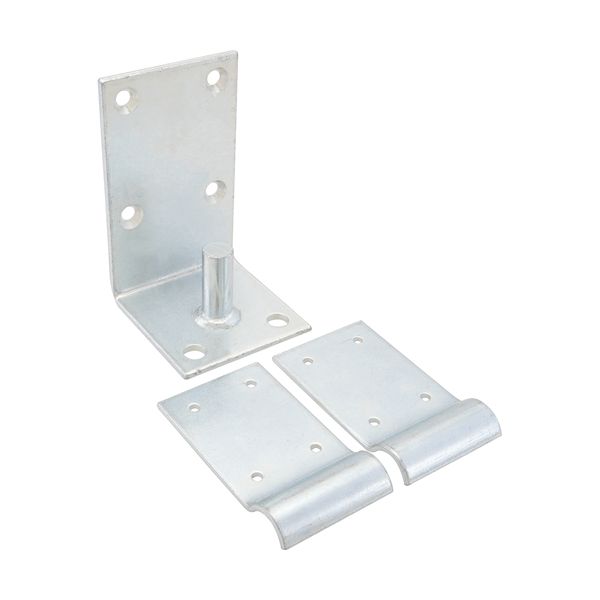

Eliason K0143 Lower Hinge Assembly
CAD$268.92
In stock
SKU
K0143
Manufacturer:
The Eliason K0143 Lower Hinge Assembly is a mechanical hinge component designed to support the lower pivot point of commercial swinging door systems. It enables controlled rotation and stable alignment of the door during repeated opening and closing cycles. The assembly is typically installed in commercial pass-through door setups used in foodservice conditions, including restaurant kitchens and facilities. It forms part of the doors support structure, working with the upper hinge to maintain proper load distribution and smooth operation within high-traffic service areas.
Dimensions
- Length: 5 In
- Width: 3.25 In
- Height: 3 In
- Weight: 2.49 lbs
Product Notes
- Lower Hinge Assembly Used On Eliason® Double-Action Swing Doors
- Depth: 5", 127 Mm
- Includes: (2)Nuts,(10)Machine Screws,(10)Wood Screws
- (1)Bottom Pin,(1)Plastic Sleeve,(2)Receiver Leafs
- Height: 4-3/4", 121 Mm
- Length: 3-1/8", 79 Mm
- Note: Used On Eliason Double-Action Swing-Doors
- Weight: 2.488 Lb
- Width: 3", 76 Mm
