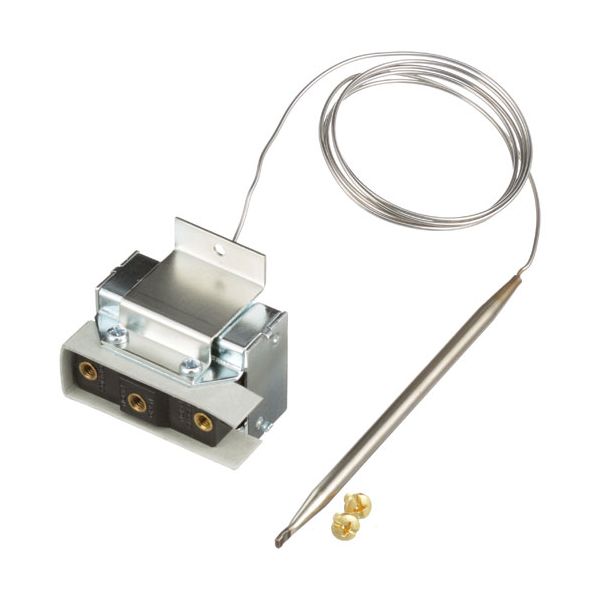

Cleveland KE55069-7 Steamer Safety Thermostat W/ 1/4" X 5"bulb 48" Capillary

A basic high-limit thermostat used in commercial steaming and kettle cooking equipment, this part is designed to monitor internal temperature and help prevent overheating during operation. It uses a 1/4 inch by 5 inch bulb connected to a 48 inch capillary tube to detect heat levels inside the cooking chamber and send signals to the control system. When the temperature goes beyond the set limit of about 458°F, the thermostat stops the heating cycle to reduce the risk of damage to the equipment. If the old thermostat is not working properly or giving wrong readings, replacing it helps bring back normal temperature control and keeps the equipment working safely.

Equipment Compatibility:
Key applications for Cleveland steamer thermostats include commercial steamers, steam kettles, and tilt skillets used in restaurants, kitchens, and food service areas where heat control is needed. This Steamer Safety Thermostat KE55069-7 is compatible with commercial equipment from leading brands such as Cleveland, Garland, and more, where basic high-limit temperature control is required for operation.

Brand Compatibility:
Replaces multiple part numbers across various commercial steamer and kettle equipment brands, including Cleveland and Garland. Refer to the “Replaces Parts” section for complete cross-reference details.

Product Specifications:
Manufacturer: Cleveland
SKU: KE55069-7
Product Type: Steamer Safety Thermostat
Temperature Rating: High-limit control at approximately 458°F
Bulb Size: 1/4 inch x 5 inch
Capillary Length: 48 inches
Application: Commercial steamers and kettle equipment
Function: Overheat protection and temperature cut-off control

Key Features:
Helps monitor temperature in commercial cooking equipment. Cuts off the heat when the temperature becomes too high. Simple bulb and capillary design for basic temperature sensing. Used in steamers and kettle cooking units. Helps restore basic temperature control when replaced.

Users often notice more stable heating and better temperature control after replacement, especially during longer cooking periods in daily kitchen use.
