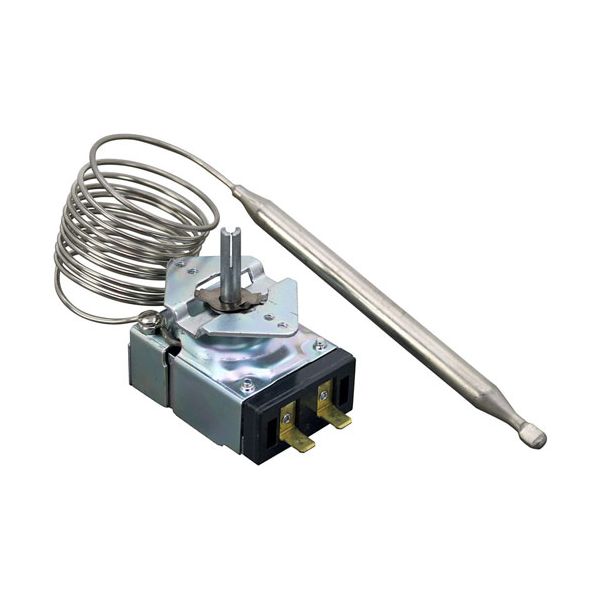

Star Mfg 2T-30402-12 Fryer Thermostat 3/8" X 5-3/8" 60" CAP KX
Special Price CAD$638.05 Regular Price CAD$889.53
In stock
SKU
2T-30402-12
Manufacturer:
The Star Mfg 2T-30402-12 Thermostat 3/8" X 5-3/8" 60" CAP KX regulates fryer temperature by sensing heat changes and sending signals to the control circuit to maintain set limits. It uses a sensing probe and capillary tube assembly to transmit temperature variations to the switch mechanism, triggering cut-in and cut-out cycles that regulate burner activity within the fryer heating system. It is typically installed within a commercial fryer control housing or mounted near the fryer vat, where the sensing bulb is positioned in oil tank and wired to the temperature control circuit for system regulation based on fryer temperature feedback loop.
Dimensions
- Length: 6 In
- Width: 1.5 In
- Height: 2.5 In
- Weight: 0.6 lbs
Product Notes
- [ Type - Kx ] [ Temp 250-375 ] [ Bulb 3/8" X 5-3/8" ]
- Cap 60" ] [ Mount 11 ]
- Dial # 22-1027 Black T'Stat Knob W/ White Printed Numbers,
- [ 2-1/4" Dia ] [Off-400-200] [Mount .187"] [Flat Down ]
- Lang Black & Silver T'Stat Knob # 22-1516,
- Off-400-200, 2" Dia, .187" D-Stem, Flat Down.
- Lang Fryer C-28, C-28M.
- Pitco Fryer All Electric Fryers.
- Em14 & Em14Dl & Em40 & Em40Dl(S/N
- 1450521 & Up).
- Super-Chef Fryer El-14C (Old El-6 & Fel-14), El-14Fm (Old
- Fel-10.8), El-414 , El-914 (Old El-4.8)
