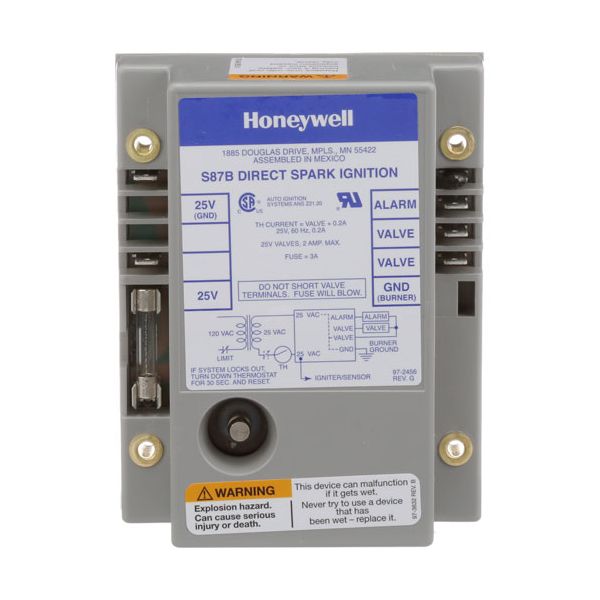

Hobart 00-416011-00001 Spark Ignition Module 25V
Special Price CAD$357.89 Regular Price CAD$697.65
Out of stock
SKU
00-416011-00001
Manufacturer:
The Hobart 00-416011-00001 Direct Spark Ignition Module 4 Sec Lockout Single Electrode 25V is used to start the ignition by creating a controlled spark to ignite the gas flow and check the presence of the flame using a single electrode system. It work by providing a timed ignition sequence and goes into a lockout state after 4 seconds when ignition is not detected and does not allow any more gas to flow until it is reset. This module is normally fitted in a commercial kitchen control panel that need gas ignition control. It is compatible with other systems that it integrates with to coordinate ignition timing, flame sensing, and secure shutdown during operation.
Dimensions
- Length: 4.5 In
- Width: 6.25 In
- Height: 3.5 In
- Weight: 1.2 lbs
Product Notes
- Honeywell
- 25V Direct Spark Ignition Module, 4 Sec Lockout,
- Uses Single Electrode For Flame Sensing And Spark Ignition
- 4" X 5-1/16", Rajah Spark Terminal On Top.
- 5Ea 1/4" Tab Terminals. 3 Amp Fuse (381050)
- Cleveland Skillet T7Es.
- Steamer Convection Steamer: 9-Pcdm-L, 9-Pcem-48-L,
- 9-Pcgm-250-L, 9-Pcgm-300-L, 9-Pcsm-L,
- Gas Steam Generators: 2 Probe Type Units (Large & Small).
- Vulcan Hart Fryer Series: Ccfd.
