Hobart 416011-1 Spark Ignition Module 25V
Special Price CAD$357.89 Regular Price CAD$697.65
Out of stock
SKU
416011-1
Manufacturer:

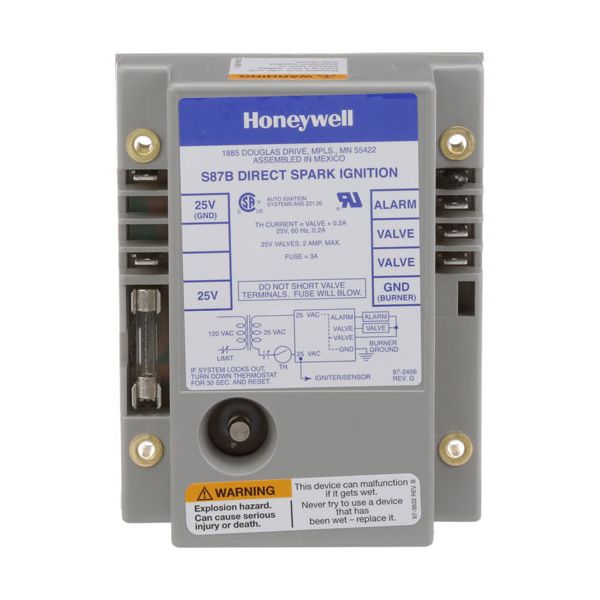

The Hobart 416011-1 Direct Spark Ignition Module 4 Sec Lockout Single Electrode 25V ignition module produces a direct spark to ignite gas. It control the ignition sequence and put on a timed lockout in case the flame is not established within four seconds breaking the cycle of gas flow. The module is commonly fitted in the control compartment of compatible commercial cooking equipment and is linked to the ignition system and gas valve circuitry. It work in the startup sequence synchronizing the spark generation and flame sensing in the operation cycle.
Dimensions
- Length: 4.5 In
- Width: 6.25 In
- Height: 3.5 In
- Weight: 1.2 lbs
Product Notes
- Honeywell
- 25V Direct Spark Ignition Module, 4 Sec Lockout,
- Uses Single Electrode For Flame Sensing And Spark Ignition
- 4" X 5-1/16", Rajah Spark Terminal On Top.
- 5Ea 1/4" Tab Terminals. 3 Amp Fuse (381050)
- Cleveland Skillet T7Es.
- Steamer Convection Steamer: 9-Pcdm-L, 9-Pcem-48-L,
- 9-Pcgm-250-L, 9-Pcgm-300-L, 9-Pcsm-L,
- Gas Steam Generators: 2 Probe Type Units (Large & Small).
- Vulcan Hart Fryer Series: Ccfd.
