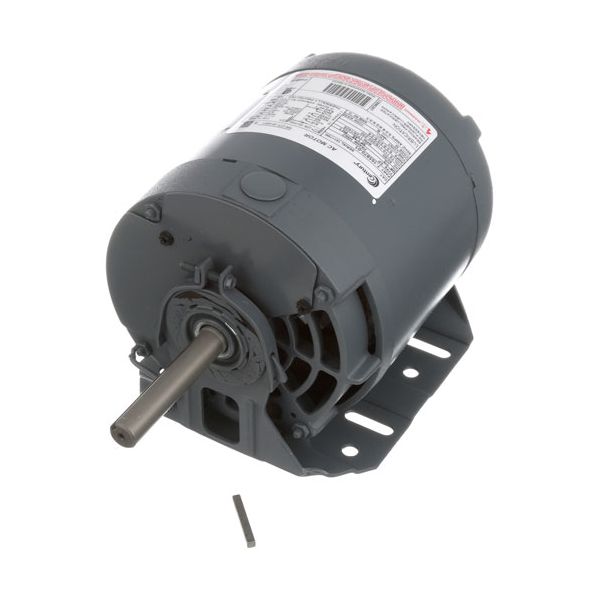

Blodgett 11840 Induction Motor CW 1/3 HP 115/230V 1PH
Special Price CAD$982.84 Regular Price CAD$1,370.21
In stock
SKU
11840
Manufacturer:
The Blodgett 11840 Induction Motor is a drive part that is used in products to power internal fan components. It is mounted in the unit compartment where it provides rotational motion to aid airflow or conveyor systems. This part has a CW rotation and has a power of 1/3 HP with a dual voltage of 115/230V on single-phase power. It is connected to the electrical system of the unit and is turned on throughout the cooking periods. Replacement is normally done as part of maintenance when the performance becomes low to enable it to proceed with normal use.
Dimensions
- Length: 12.875 In
- Width: 10 In
- Height: 10.5 In
- Weight: 23 lbs
Product Notes
- Century Motor
- [ 100-115/200-230V, ] [ 1/3Hp, ] [1P ] [1725/1425 RPM]
- [5.1-5.2/2.6-2.6A ] [Cw Rotation Looking From The Shaft
- Side]
- Motor Direction Can Be Changed By Interchanging
- Red And Black Leads . Refer To Data Plate On Motor
- And Instructions Included With The Motor.
- Oven Dfg 100, Dfg 200, Dfg 300.
- Series: Ef/Eze, Fa/Gzl, Mark V, Re, Zephaire E & G
- (Some Eze Units Require Dual Speed Motor).
- 2 Spd Motor Dfg100/200 Oem # 32291, # 68-1058
