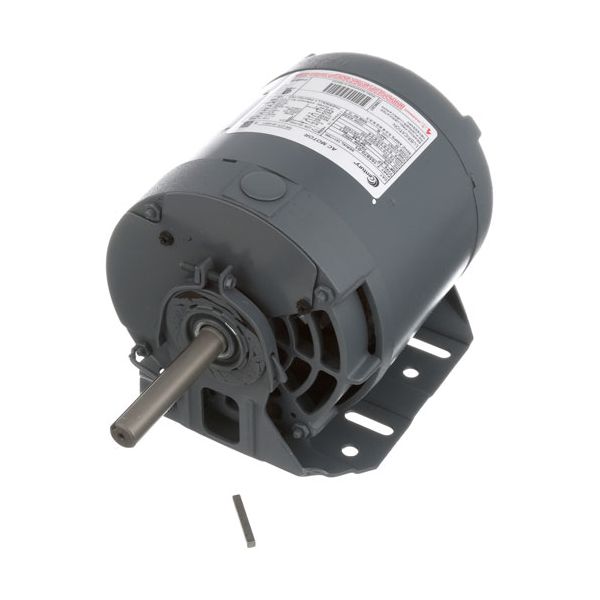

Blodgett 7189 Induction Motor CW 1/3 HP 115/230V 1PH
Special Price CAD$982.84 Regular Price CAD$1,370.21
In stock
SKU
7189
Manufacturer:
The Blodgett 7189 Induction Motor is a replacement part that is used in appliances to drive internal fans or conveyor belts. It is fitted in the part where it provides rotational power in operation. This component has CW rotation, a 1/3 HP rating and works on 115/230 V single-phase power. It is attached to internal assemblies and assists in airflow or moving products. It is commonly used in commercial cooking equipment and is activated when in use. It is normally done during servicing when the performance becomes low to enable it to continue operation.
Dimensions
- Length: 12.875 In
- Width: 10 In
- Height: 10.5 In
- Weight: 23 lbs
Product Notes
- Century Motor
- [ 100-115/200-230V, ] [ 1/3Hp, ] [1P ] [1725/1425 RPM]
- [5.1-5.2/2.6-2.6A ] [Cw Rotation Looking From The Shaft
- Side]
- Motor Direction Can Be Changed By Interchanging
- Red And Black Leads . Refer To Data Plate On Motor
- And Instructions Included With The Motor.
- Oven Dfg 100, Dfg 200, Dfg 300.
- Series: Ef/Eze, Fa/Gzl, Mark V, Re, Zephaire E & G
- (Some Eze Units Require Dual Speed Motor).
- 2 Spd Motor Dfg100/200 Oem # 32291, # 68-1058
