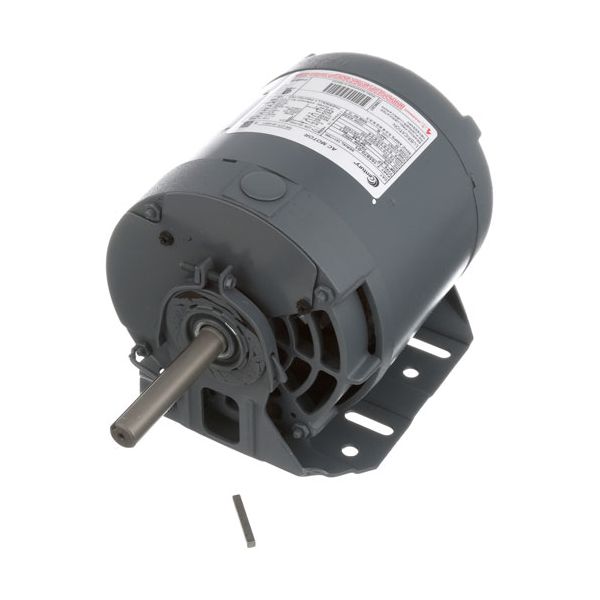

Blodgett 5382 Induction Motor CW 1/3 HP 115/230V 1PH
Special Price CAD$982.84 Regular Price CAD$1,370.21
In stock
SKU
5382
Manufacturer:
The Blodgett 5382 Induction Motor is a mechanical directing component that is used in equipment to provide rotational movement to internal systems. It is installed in the product housing where it drives fans or other moving components when it is in operation. This unit operates clockwise at 1/3 HP and can accept 115/230V single-phase power input. It is combined with wiring and mechanical assemblies in the appliances. It is commonly used in commercial apparatus, and it is active in active cooking cycles. Replacement is normally performed during servicing when the output becomes faulty to enable it to continue operating.
Dimensions
- Length: 12.875 In
- Width: 10 In
- Height: 10.5 In
- Weight: 23 lbs
Product Notes
- Century Motor
- [ 100-115/200-230V, ] [ 1/3Hp, ] [1P ] [1725/1425 RPM]
- [5.1-5.2/2.6-2.6A ] [Cw Rotation Looking From The Shaft
- Side]
- Motor Direction Can Be Changed By Interchanging
- Red And Black Leads . Refer To Data Plate On Motor
- And Instructions Included With The Motor.
- Oven Dfg 100, Dfg 200, Dfg 300.
- Series: Ef/Eze, Fa/Gzl, Mark V, Re, Zephaire E & G
- (Some Eze Units Require Dual Speed Motor).
- 2 Spd Motor Dfg100/200 Oem # 32291, # 68-1058
