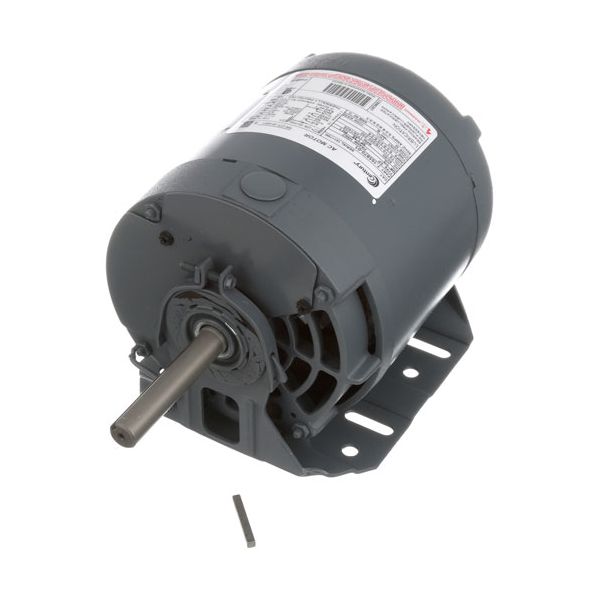

Blodgett 90005 Induction Motor CW 1/3 HP 115/230V 1PH
Special Price CAD$982.84 Regular Price CAD$1,370.21
In stock
SKU
90005
Manufacturer:
The Blodgett 90005 Induction Motor is a mechanical part used in standard equipment to produce rotational force on internal apparatus. It is a CW 1/3 HP motor with a single-phase supply of 115/230V. It is mounted in the compartment, and it drives fan blades or other assemblies to which it is connected. It is associated with the electrical and mechanical systems of the unit. It is typically used in commercial appliances and is used when they are cooking. Replacement is usually done during maintenance when the output becomes unusual, and it is possible to continue its operation.
Dimensions
- Length: 12.875 In
- Width: 10 In
- Height: 10.5 In
- Weight: 23 lbs
Product Notes
- Century Motor
- [ 100-115/200-230V, ] [ 1/3Hp, ] [1P ] [1725/1425 RPM]
- [5.1-5.2/2.6-2.6A ] [Cw Rotation Looking From The Shaft
- Side]
- Motor Direction Can Be Changed By Interchanging
- Red And Black Leads . Refer To Data Plate On Motor
- And Instructions Included With The Motor.
- Oven Dfg 100, Dfg 200, Dfg 300.
- Series: Ef/Eze, Fa/Gzl, Mark V, Re, Zephaire E & G
- (Some Eze Units Require Dual Speed Motor).
- 2 Spd Motor Dfg100/200 Oem # 32291, # 68-1058
