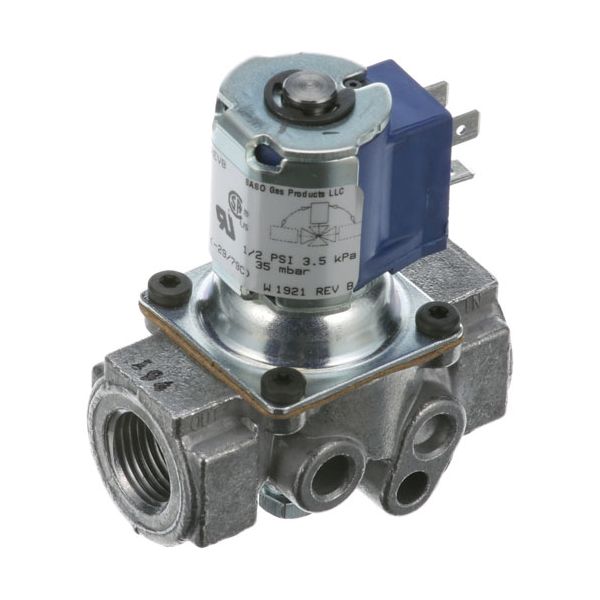

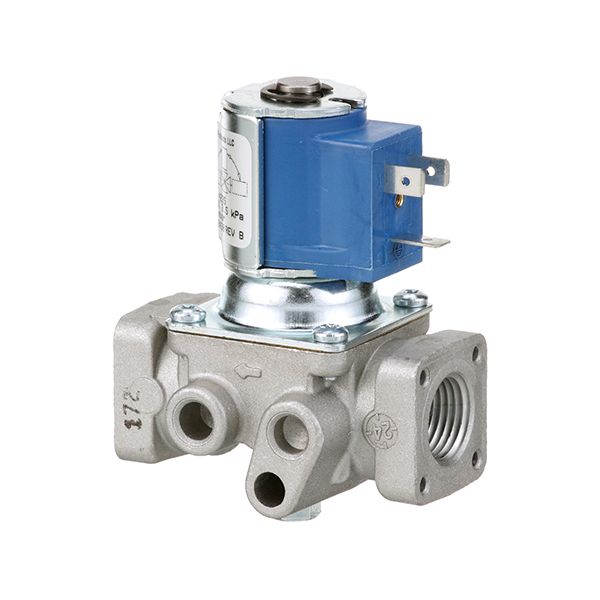

Johnson Controls H91DA7 Solenoid Valve 1/2" 120V
Special Price CAD$199.93 Regular Price CAD$344.42
In stock
SKU
H91DA7
Manufacturer:
The Johnson Controls H91DA7 Solenoid Valve is an electrically operated fluid or gas control for use in commercial equipment systems. This 1/2" connection and 120V rating make it compatible with standard control applications. It mounts in the supply line at a point where it joins the piping and control wiring assemblies. Operation of the valve is by an activated coil that moves an internal plunger mechanism to open or close the flow path in response to signals from the system controls.
Dimensions
- Length: 3.5 In
- Width: 3 In
- Height: 2 In
- Weight: 0.64 lbs
Product Notes
- [ Gas Nat/Lp ] [1/2" Fpt Gas In/Out ] [ Nc ] [ 120 V ]
- [ Width 3"] [ 240,000 Btu ] [ 1/4" Tab Term ]
- [ Brand Baso ] [ Mfg# H91Da-7 ]
- 1/8" Pressure Tap On Bottom Of Valve
- 3"L X 2"W X 3-3/4"H, Ship Wt. 0.64 Lbs.
- Blodgett Oven Mt2136G, Mt3255.
- Series: Dfg 100, 200 & 300 Before 7/84, Fa/Gzl.
- Garland Model?
- Lang Model?
- Lincoln Oven 1116 ( Units That Had Honeywell Valve),
- 1117, 1450. Series: 1040, 1240.
