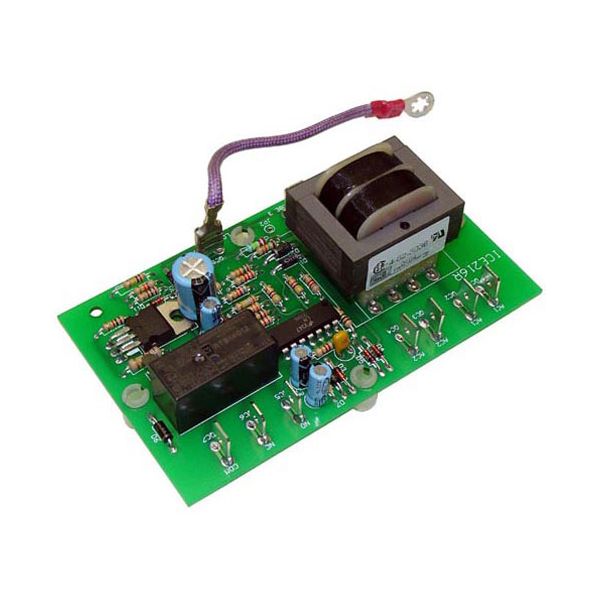

Hatco HT2-01-210 Low Water Cut Off Board
CAD$202.00
In stock
SKU
HT2-01-210
Manufacturer:
The Hatco HT2-01-210 Low Water Cut Off Board is a control component used in commercial water heating systems to regulate levels during operation. It continuously evaluates input from level sensing components and signals the system to stop heating when insufficient water is detected. Positioned within the electrical control compartment, it interfaces with heating circuits and shield systems to maintain safe equipment operation. This board is typically found in commercial kitchen water heaters and related holding systems. It provides system protection by supporting controlled shutdown under low water conditions. It operates as part of the appliance safety control architecture system design.
Dimensions
- Length: 5 In
- Width: 3 In
- Height: 1.5 In
- Weight: 0.4 lbs
Product Notes
- Liquid Level Control, 120/208/240V,
- Old Style Has A Stainless Steel
- Plate On Back Of The Board. The New Style Does
- Not Have Or Need The Plate. Board 2-1/2" X 4-1/4"
- Mounts In Same Holes As Plate.
- Hatco Series Fr Except Fr-5-C, Compact, Imperial, Powermite.
