Hobart 00-408379-00003 Burner Valve 1/4" MPT X 1/2" CCT
CAD$203.06
In stock
SKU
00-408379-00003
Manufacturer:

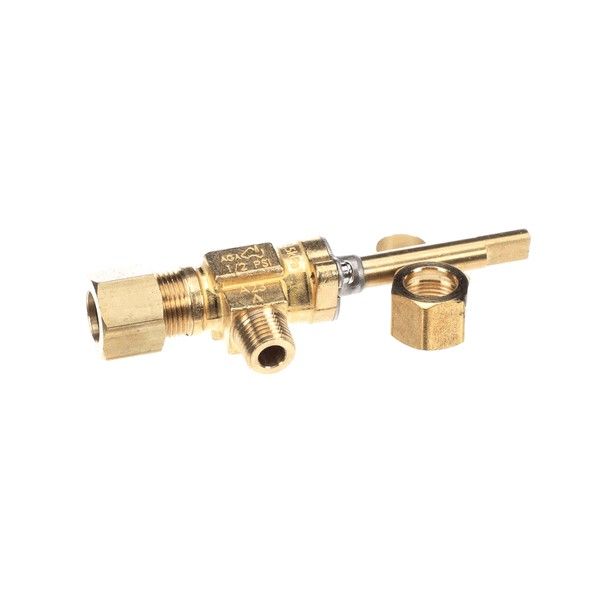

The Hobart 00-408379-00003 Burner Valve is a control fitting used to manage gas movement within commercial cooking equipment. It provides a regulated pathway between the supply line and the burner section, allowing adjustment of gas delivery as needed. The inlet side is designed with a 1/4" male pipe thread connection, while the outlet side uses a 1/2" compression connection for secure line joining. Internal movement within the valve alters the flow opening, changing the amount of gas reaching the burner. Built for repeated adjustment, it maintains steady operation under continuous cooking conditions.
Dimensions
- Length: 4 In
- Width: 1.5 In
- Height: 1 In
- Weight: 0.4 lbs
Product Notes
- Burner Valve,
- [ 1/4" Mpt X 1/2" Cct ] [ Rotation Off/On] [Stem Position
- Down ] [Stem Size .240" ] [Ctr Inlet To End Of Stem 3" ]
- Angle - 90] Stem 2-3/16" Long.
- Does Not Include Orifice Hood.
- Does Not Include 1/2" Cct Nut & Ferrule.
- If Needed, We Only Stock A 1/2" Cct Union Elbow Which Has
- Qty 2Ea 1/2" Cct Nuts & Ferrules # 26-3771
- Vulcan Broiler Hcb44 (Old 7844L), Hcbo40 (Old 7840Al).
- Range 7856A, Gh3/72, Gh3/72C, Gh3/72S, Gh56, Gh56S, Gh6,
- Gh6C,Gh6S, Ghm3/72, Ghm56, Ghm6, Sg7856A.
