Hobart 408379-3 Burner Valve 1/4" MPT X 1/2" CCT
CAD$203.06
In stock
SKU
408379-3
Manufacturer:

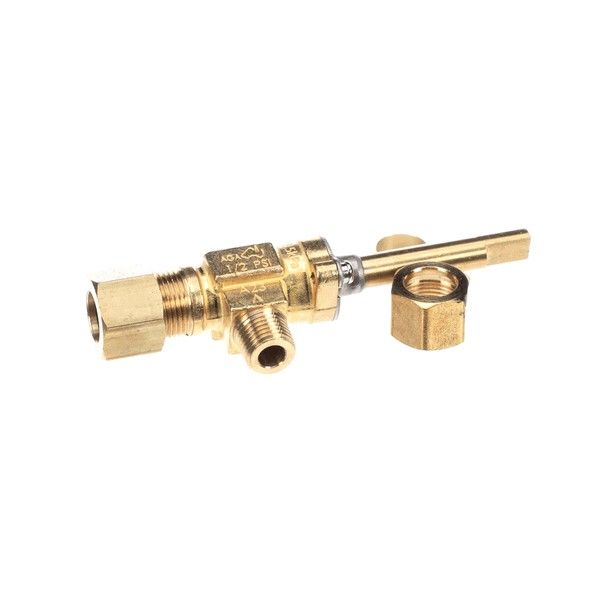

The Hobart 408379-3 Burner Valve is a control point of all cooking equipment that controls and regulates the gas supply to the burner. It has a 1/4" MPT inlet and a 1/2" compression outlet and is part of the internal gas pathway in the equipment. This part is mostly used in restaurants, cafeterias, and commercial kitchens where heat must be regulated. Its position in the gas system keeps the gas in order and assists in the thermal operation when production demands are high during regular cooking procedures.
Dimensions
- Length: 4 In
- Width: 1.5 In
- Height: 1 In
- Weight: 0.4 lbs
Product Notes
- Burner Valve,
- [ 1/4" Mpt X 1/2" Cct ] [ Rotation Off/On] [Stem Position
- Down ] [Stem Size .240" ] [Ctr Inlet To End Of Stem 3" ]
- Angle - 90] Stem 2-3/16" Long.
- Does Not Include Orifice Hood.
- Does Not Include 1/2" Cct Nut & Ferrule.
- If Needed, We Only Stock A 1/2" Cct Union Elbow Which Has
- Qty 2Ea 1/2" Cct Nuts & Ferrules # 26-3771
- Vulcan Broiler Hcb44 (Old 7844L), Hcbo40 (Old 7840Al).
- Range 7856A, Gh3/72, Gh3/72C, Gh3/72S, Gh56, Gh56S, Gh6,
- Gh6C,Gh6S, Ghm3/72, Ghm56, Ghm6, Sg7856A.
