Hobart 108379-1 Burner Valve 1/4" MPT X 1/2" CCT
CAD$203.06
In stock
SKU
108379-1
Manufacturer:

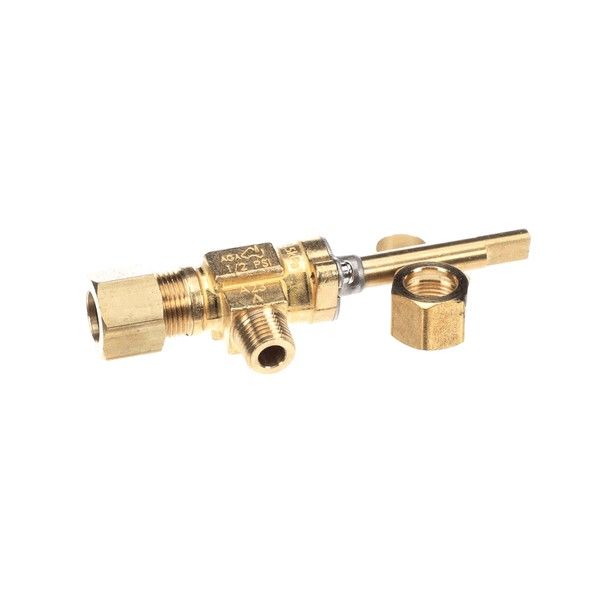

The Hobart 108379-1 Burner Valve is a gas regulation component used in a commercial cooking unit. It manages the passage of gas by controlling an internal flow channel that connects the supply line to the burner. The inlet is configured with a 1/4" male pipe thread connection, while the outlet uses a 1/2" compression fitting for secure attachment. Turning the control stem adjusts the internal opening which changes the amount of gas delivered to the burner. Built for frequent use, it maintains consistent flow adjustment and accurate performance under repeated heating cycles.
Dimensions
- Length: 4 In
- Width: 1.5 In
- Height: 1 In
- Weight: 0.4 lbs
Product Notes
- Burner Valve,
- [ 1/4" Mpt X 1/2" Cct ] [ Rotation Off/On] [Stem Position
- Down ] [Stem Size .240" ] [Ctr Inlet To End Of Stem 3" ]
- Angle - 90] Stem 2-3/16" Long.
- Does Not Include Orifice Hood.
- Does Not Include 1/2" Cct Nut & Ferrule.
- If Needed, We Only Stock A 1/2" Cct Union Elbow Which Has
- Qty 2Ea 1/2" Cct Nuts & Ferrules # 26-3771
- Vulcan Broiler Hcb44 (Old 7844L), Hcbo40 (Old 7840Al).
- Range 7856A, Gh3/72, Gh3/72C, Gh3/72S, Gh56, Gh56S, Gh6,
- Gh6C,Gh6S, Ghm3/72, Ghm56, Ghm6, Sg7856A.
