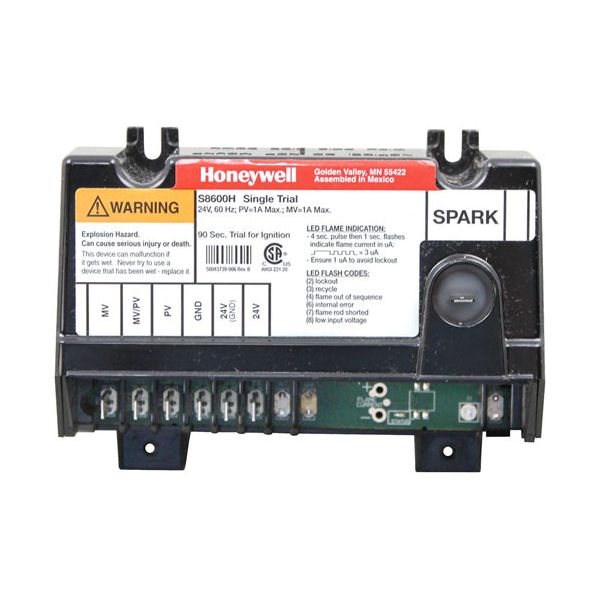

Hobart 00-426225-00001 Ignition Control Module 24V F429 CA-145
Special Price CAD$328.10 Regular Price CAD$561.19
In stock
SKU
00-426225-00001
Manufacturer:
The Hobart 00-426225-00001 Ignition Control Module is an electrical management part, of commercial kitchen equipment that is utilized to control the unit of the burners and the flame control during operation. This module is powered by 24V and has the F429 CA-145 configuration to work with the specified heating systems. It assists in timing and flame sequencing during repeated cooking cycles during operation. Replacement is normally performed when fire response, flame monitoring, or electrical communication is inconsistent during normal commercial kitchen use as part of a regular servicing.
Dimensions
- Length: 5.5 In
- Width: 4 In
- Height: 2 In
- Weight: 0.75 lbs
Product Notes
- Ignition Control Module 24V, F429, Ca-145, # 441283
- S8600H3002,
- 1 Mv, 2 Mv/Pv, 3 Pv,
- 4 Gnd(Burner), 5 24V(Gnd), 6 24V, 9 Spark, 90 Sec
- New/Style Black Box W/ Spark Connection On Top
- Groen Kettle, Marshall Air Broiler.
- For Vulcan Hart:
- Nat/Lp Pilot, H501, # 51-1467
- Ignition Cable, Vul419359 (Non-Stock)
- Vulcan Model 1Gr45M, 1Gr65M, 1Gr85M, 1Grc35, 1Grc45,
- 1Grc65,1Grd45, 1Grd65, 1Grs35, 1Grs45, 1Grs65, Ef3, Ef4,
- Ef5, G40Tb, Gr35,Gr35F, Gr45, Gr45F, Gr65, Gr65F, Gr85,
- Gr85F, Grc35F,Grc45F, Grc65F, Grc85F, Grd35F, Grd45F,
- Grd65F, Grd85F,Grs35F, Grs45F, Grs65F, Grs85F
