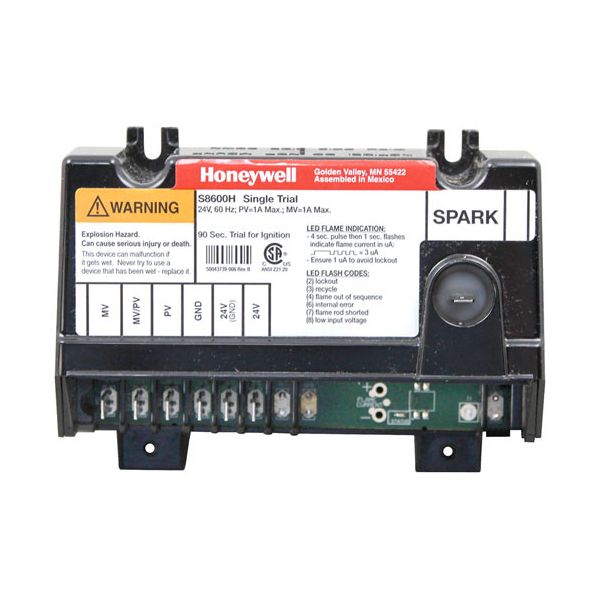

Hobart 857207-00001 Ignition Control Module 24V F429 CA-145
Special Price CAD$328.10 Regular Price CAD$561.19
In stock
SKU
857207-00001
Manufacturer:
The Hobart 857207-00001 Ignition Control Module is a regulation unit for heating equipment, that regulates the start-up and operation of the burner when cooking. It is fitted inside the electrical section and connects to the systems, gas valves, and flame monitoring assemblys. This module is powered by 24V, and has been designed to fit specific commercial kitchen products with the F429 CA-145 configuration. It assists with the timing and burner management during repeated heating procedures during operation. This is usually done when the accurate response of the electrical communication becomes inconsistent during normal use of the equipment during servicing.
Dimensions
- Length: 5.5 In
- Width: 4 In
- Height: 2 In
- Weight: 0.75 lbs
Product Notes
- Ignition Control Module 24V, F429, Ca-145, # 441283
- S8600H3002,
- 1 Mv, 2 Mv/Pv, 3 Pv,
- 4 Gnd(Burner), 5 24V(Gnd), 6 24V, 9 Spark, 90 Sec
- New/Style Black Box W/ Spark Connection On Top
- Groen Kettle, Marshall Air Broiler.
- For Vulcan Hart:
- Nat/Lp Pilot, H501, # 51-1467
- Ignition Cable, Vul419359 (Non-Stock)
- Vulcan Model 1Gr45M, 1Gr65M, 1Gr85M, 1Grc35, 1Grc45,
- 1Grc65,1Grd45, 1Grd65, 1Grs35, 1Grs45, 1Grs65, Ef3, Ef4,
- Ef5, G40Tb, Gr35,Gr35F, Gr45, Gr45F, Gr65, Gr65F, Gr85,
- Gr85F, Grc35F,Grc45F, Grc65F, Grc85F, Grd35F, Grd45F,
- Grd65F, Grd85F,Grs35F, Grs45F, Grs65F, Grs85F
