Hobart 417980-1 Ignition Control Module 24V F429 CA-145
Special Price CAD$328.10 Regular Price CAD$561.19
In stock
SKU
417980-1
Manufacturer:

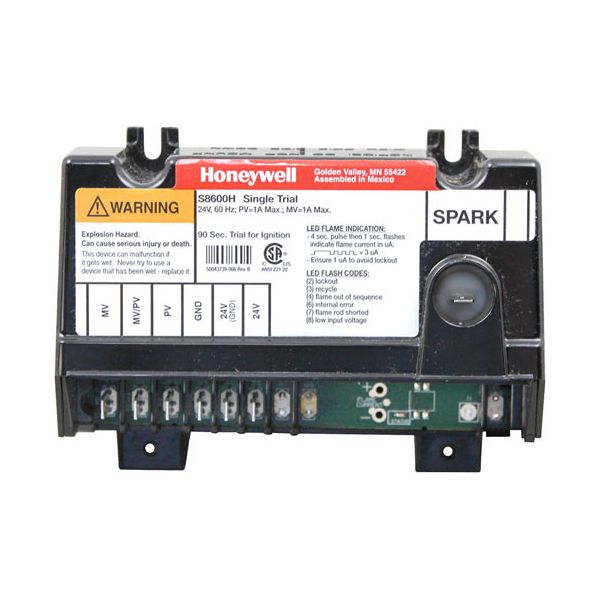

The Hobart 417980-1 Ignition Control Module is a foodservice equipment electrical burner management part to assist in the system when heating. It is mounted inside the electrical assembly of the equipment and is in communication with the combustion systems, flame sensors, and gas valves that are connected to the equipment. This 24V module is compatible with the F429 CA-145 configuration and will be aligned with commercial equipment. When operating, it is active during repeats, and it can be used for the execution of operations. The replacement is usually performed during servicing when response, furnace communication, or electrical performance is inconsistent during normal commercial operation.
Dimensions
- Length: 5.5 In
- Width: 4 In
- Height: 2 In
- Weight: 0.75 lbs
Product Notes
- Ignition Control Module 24V, F429, Ca-145, # 441283
- S8600H3002,
- 1 Mv, 2 Mv/Pv, 3 Pv,
- 4 Gnd(Burner), 5 24V(Gnd), 6 24V, 9 Spark, 90 Sec
- New/Style Black Box W/ Spark Connection On Top
- Groen Kettle, Marshall Air Broiler.
- For Vulcan Hart:
- Nat/Lp Pilot, H501, # 51-1467
- Ignition Cable, Vul419359 (Non-Stock)
- Vulcan Model 1Gr45M, 1Gr65M, 1Gr85M, 1Grc35, 1Grc45,
- 1Grc65,1Grd45, 1Grd65, 1Grs35, 1Grs45, 1Grs65, Ef3, Ef4,
- Ef5, G40Tb, Gr35,Gr35F, Gr45, Gr45F, Gr65, Gr65F, Gr85,
- Gr85F, Grc35F,Grc45F, Grc65F, Grc85F, Grd35F, Grd45F,
- Grd65F, Grd85F,Grs35F, Grs45F, Grs65F, Grs85F
