Legion 404007 Ignition Control Module 24V F429 CA-145
Special Price CAD$328.10 Regular Price CAD$561.19
In stock
SKU
404007
Manufacturer:

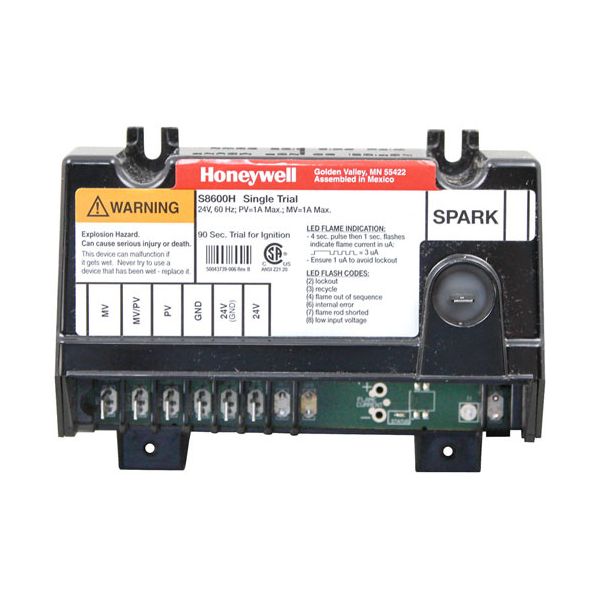

The Legion 404007 Ignition Control Module is an electrical module for commercial heating equipment to regulate the activation of the burners during operation. It is mounted in the control assembly, and connects to the systems, gas valves, and flame-sensing elements. This control module is 24V powered with the F429 CA-145 configuration to be compatible with specific heating systems. Active during operation, it repeats heating cycles and provides communication and timing. Replacement is usually performed during servicing when there is a loss of system performance, electrical response, or flame initiation during normal commercial equipment operation.
Dimensions
- Length: 5.5 In
- Width: 4 In
- Height: 2 In
- Weight: 0.75 lbs
Product Notes
- Ignition Control Module 24V, F429, Ca-145, # 441283
- S8600H3002,
- 1 Mv, 2 Mv/Pv, 3 Pv,
- 4 Gnd(Burner), 5 24V(Gnd), 6 24V, 9 Spark, 90 Sec
- New/Style Black Box W/ Spark Connection On Top
- Groen Kettle, Marshall Air Broiler.
- For Vulcan Hart:
- Nat/Lp Pilot, H501, # 51-1467
- Ignition Cable, Vul419359 (Non-Stock)
- Vulcan Model 1Gr45M, 1Gr65M, 1Gr85M, 1Grc35, 1Grc45,
- 1Grc65,1Grd45, 1Grd65, 1Grs35, 1Grs45, 1Grs65, Ef3, Ef4,
- Ef5, G40Tb, Gr35,Gr35F, Gr45, Gr45F, Gr65, Gr65F, Gr85,
- Gr85F, Grc35F,Grc45F, Grc65F, Grc85F, Grd35F, Grd45F,
- Grd65F, Grd85F,Grs35F, Grs45F, Grs65F, Grs85F
