Legion LGN404007 Ignition Control Module 24V F429 CA-145
Special Price CAD$328.10 Regular Price CAD$561.19
In stock
SKU
LGN404007
Manufacturer:

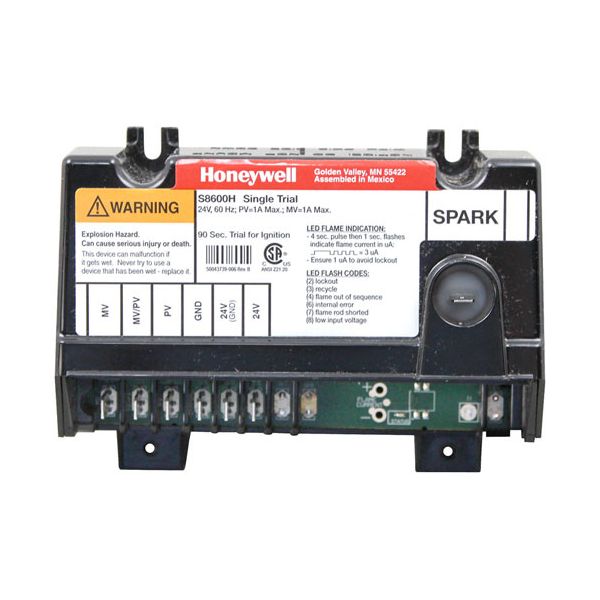

The Legion LGN404007 Ignition Control Module is a burner management system for commercial cooking equipment to assists in the regulation during the heating cycle. It is mounted inside the electrical compartment and connects to gas valves, assemblys and flame-sensing systems. This module is powered by 24V and is based on the F429 CA-145 configuration to be compatible with specific heating applications. It is active during operation, repeats ignitions, and participates in coordinated start-up activities. This is normally performed during servicing when the communication, sensing, or electrical accuracy is not consistent in normal commercial use.
Dimensions
- Length: 5.5 In
- Width: 4 In
- Height: 2 In
- Weight: 0.75 lbs
Product Notes
- Ignition Control Module 24V, F429, Ca-145, # 441283
- S8600H3002,
- 1 Mv, 2 Mv/Pv, 3 Pv,
- 4 Gnd(Burner), 5 24V(Gnd), 6 24V, 9 Spark, 90 Sec
- New/Style Black Box W/ Spark Connection On Top
- Groen Kettle, Marshall Air Broiler.
- For Vulcan Hart:
- Nat/Lp Pilot, H501, # 51-1467
- Ignition Cable, Vul419359 (Non-Stock)
- Vulcan Model 1Gr45M, 1Gr65M, 1Gr85M, 1Grc35, 1Grc45,
- 1Grc65,1Grd45, 1Grd65, 1Grs35, 1Grs45, 1Grs65, Ef3, Ef4,
- Ef5, G40Tb, Gr35,Gr35F, Gr45, Gr45F, Gr65, Gr65F, Gr85,
- Gr85F, Grc35F,Grc45F, Grc65F, Grc85F, Grd35F, Grd45F,
- Grd65F, Grd85F,Grs35F, Grs45F, Grs65F, Grs85F
