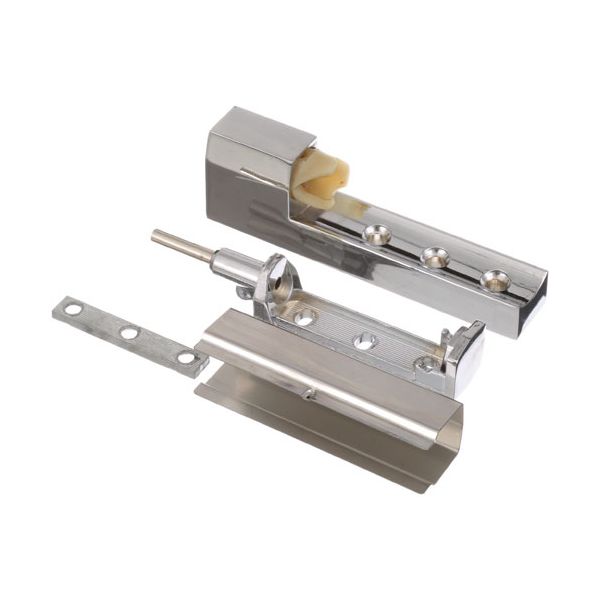

Hobart 00-436057-00022 Edgemount Cam Lift Hinge
CAD$30.86
In stock
SKU
00-436057-00022
Manufacturer:
The Hobart 00-436057-00022 Edgemount Cam Lift Hinge is a replacement part that is used in commercial kitchen equipment, as well as in other appliance doors. It operates by allowing the door or panel to move and, in a controlled manner, to allow correct positioning and closure. The cam lift design is installed at the edge mount position to lift the door with minimum effort and reduce the other components. It is an essential in ensuring the performance of the appliance in high-use food service conditions like restaurants and kitchens, as well as the operational integrity and usability of the appliance.
Dimensions
- Length: 6 In
- Width: 2 In
- Height: 1 In
- Weight: 0.92 lbs
Product Notes
- Edgemount Cam Lift Hinge, Chrome, 1-5/8" Offset
- 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4",
- Screw Centers 1-1/16". Outside Mount Hole Centers 2-1/8",
- Series 2850-1013
- Beverage Air Dp119, Dp41, Dp46, Dp67, Dp93, Ef24, Ef24-1Ahs,
- Ef241Ah 0001Rcn, Ef48, Ef74, Er24, Er48, Er74, Pf24, Pf48,
- Pf74, Pfi1, Pfi2, Pr24, Pr48, Pr74, Prd24, Prd48, Prd74,
- Prf12-12, Prf24-24, Prf48-24, Pri1, Pri2, Prt1, Prt2, Pw24,
- Pw48, Pwd24, Pwd48, Pwi1, Pwi2, Sp27, Sp48, Sp60, Sp72, Uc,
- Ucf27, Ucf27A, Ucf48, Ucr20, Ucr34, Wt, Wtf27, Wtf27A,Wtf48
- Delfield, Randell, Traulsen
- Victory Pt-40, Pt-64, Pt-88, Series 6, Series 7,
- Ur-3, Ur-4, Ur-5, V-Series, Vpt-119, Vpt-46, Vpt-88
