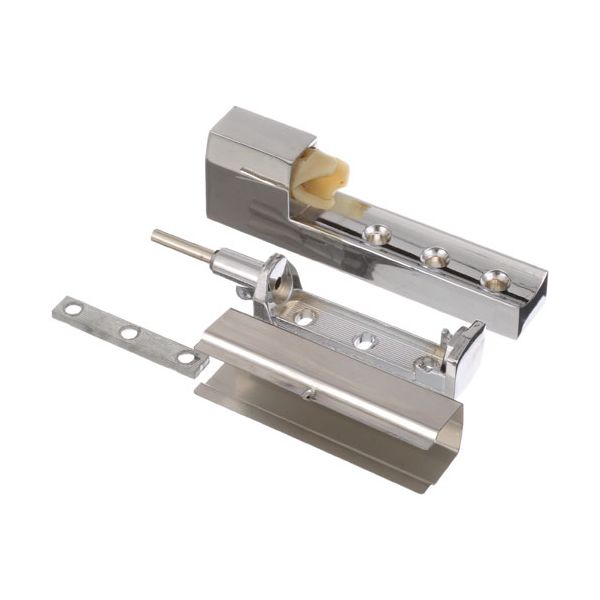

Delfield 323-4617 Edgemount Cam Lift Hinge
CAD$30.86
In stock
SKU
323-4617
Manufacturer:
The Delfield 323-4617 Edgemount Cam Lift Hinge is a spare part that is applicable in commercial units and kitchen appliances. It is used to facilitate the movement of doors and also gives a controlled lift and alignment to ensure that it opens and closes. The cam lift mechanism is mounted at the edge mount of the appliance door to minimize the stress on the surrounding parts and enable it to operate. This is a vital role in the integrity of refrigeration and other hinged appliances in operation, which leads to the stability of performance in high-volume food service conditions like restaurants and kitchen settings.
Dimensions
- Length: 6 In
- Width: 2 In
- Height: 1 In
- Weight: 0.92 lbs
Product Notes
- Edgemount Cam Lift Hinge, Chrome, 1-5/8" Offset
- 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4",
- Screw Centers 1-1/16". Outside Mount Hole Centers 2-1/8",
- Series 2850-1013
- Beverage Air Dp119, Dp41, Dp46, Dp67, Dp93, Ef24, Ef24-1Ahs,
- Ef241Ah 0001Rcn, Ef48, Ef74, Er24, Er48, Er74, Pf24, Pf48,
- Pf74, Pfi1, Pfi2, Pr24, Pr48, Pr74, Prd24, Prd48, Prd74,
- Prf12-12, Prf24-24, Prf48-24, Pri1, Pri2, Prt1, Prt2, Pw24,
- Pw48, Pwd24, Pwd48, Pwi1, Pwi2, Sp27, Sp48, Sp60, Sp72, Uc,
- Ucf27, Ucf27A, Ucf48, Ucr20, Ucr34, Wt, Wtf27, Wtf27A,Wtf48
- Delfield, Randell, Traulsen
- Victory Pt-40, Pt-64, Pt-88, Series 6, Series 7,
- Ur-3, Ur-4, Ur-5, V-Series, Vpt-119, Vpt-46, Vpt-88
