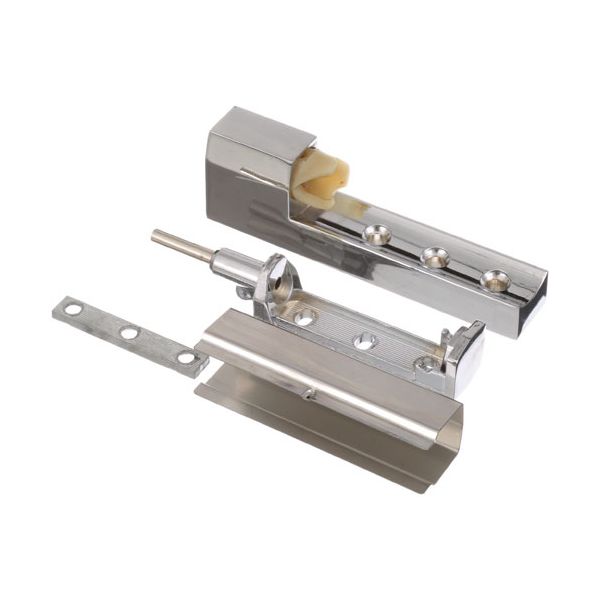

Beverage Air 00C34031D01 Refrigerator Edgemount Cam Lift Hinge
CAD$30.86
In stock
SKU
00C34031D01
Manufacturer:
The Beverage Air 00C34031D01 Edgemount Cam Lift Hinge is intended to be used in commercial refrigeration equipment and assists in the operation and alignment of the door. It is designed in a way that the doors open and stay in their place without straining the hinges and other parts. It is usually mounted on the side of the refrigerator or freezer doors and is a major component of the mechanism of operation of the appliance. This is used to provide a consistent movement and a closure to the general application of commercial refrigeration units in food service, such as restaurants.
Dimensions
- Length: 6 In
- Width: 2 In
- Height: 1 In
- Weight: 0.92 lbs
Product Notes
- Edgemount Cam Lift Hinge, Chrome, 1-5/8" Offset
- 5-3/4" Long X 1-1/16" Wide X Frt To Back 1-3/4",
- Screw Centers 1-1/16". Outside Mount Hole Centers 2-1/8",
- Series 2850-1013
- Beverage Air Dp119, Dp41, Dp46, Dp67, Dp93, Ef24, Ef24-1Ahs,
- Ef241Ah 0001Rcn, Ef48, Ef74, Er24, Er48, Er74, Pf24, Pf48,
- Pf74, Pfi1, Pfi2, Pr24, Pr48, Pr74, Prd24, Prd48, Prd74,
- Prf12-12, Prf24-24, Prf48-24, Pri1, Pri2, Prt1, Prt2, Pw24,
- Pw48, Pwd24, Pwd48, Pwi1, Pwi2, Sp27, Sp48, Sp60, Sp72, Uc,
- Ucf27, Ucf27A, Ucf48, Ucr20, Ucr34, Wt, Wtf27, Wtf27A,Wtf48
- Delfield, Randell, Traulsen
- Victory Pt-40, Pt-64, Pt-88, Series 6, Series 7,
- Ur-3, Ur-4, Ur-5, V-Series, Vpt-119, Vpt-46, Vpt-88
