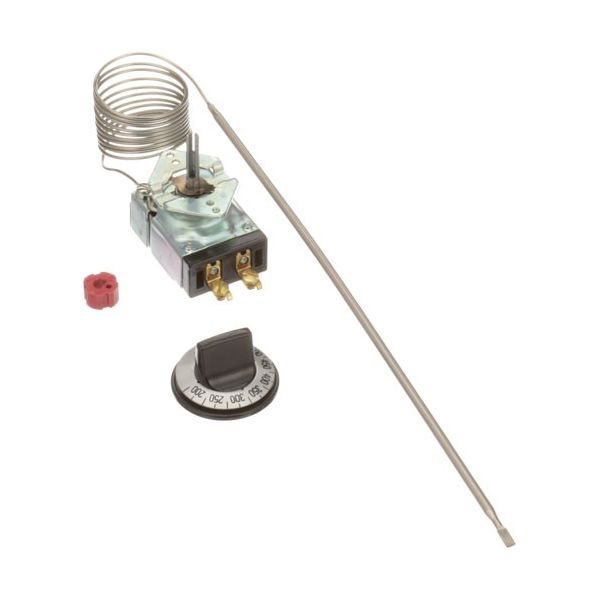

Southbend 116145-2 Range Thermostat W/Dial 3/16" X 11-5/8" KXP
Special Price CAD$432.74 Regular Price CAD$737.37
In stock
SKU
116145-2
Manufacturer:
The Southbend 116145-2 Range Thermostat W/Dial 3/16" X 11-5/8" KXP regulates the temperature by detecting the internal heat of commercial oven. The capillary system reacts to temperature variations and varies the dial position to sustain the desired heat level during use which supports to ensure a uniform temperature response throughout the cooking cycle. It is mounted in the oven control assembly panel where temperature control elements connect with heating elements, and attached to the oven housing close to the control knob to be accessible.
Dimensions
- Length: 11.525 In
- Width: 0.188 In
- Height: 2 In
- Weight: 0.8 lbs
Product Notes
- Thermostat,
- Kxp, Temp 175-500, Bulb 3/16" X 11-5/8"
- Cap 60", Mount 1
- Dial Kit # 22-1128 Off-550-200 Insert (Closest We Have)
- If Oem Knob Is Preffered, Use Ap# 1661140
- Southbend Oven All Co Prefix Ovens~
- X10A.
- Series: V, Vs, X, Xs Gas Ovens, 300 Double Ovens.
- Platinum Series (Units With P Prefix)
