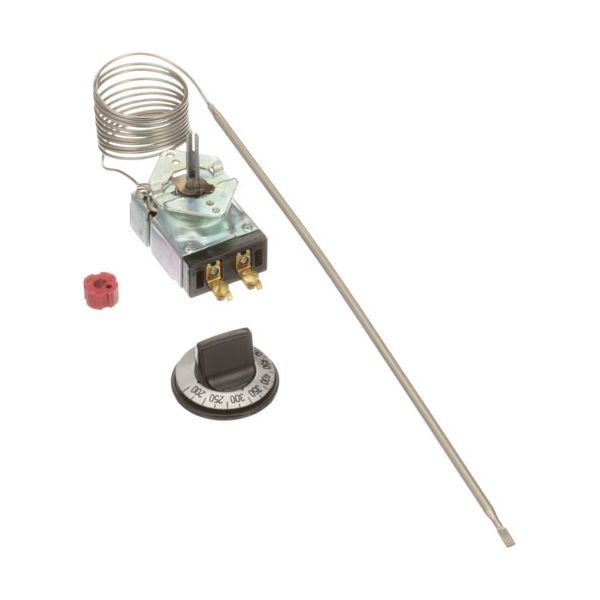

Southbend SOU1011299 Range Thermostat W/Dial 3/16" X 11-5/8" KXP
Special Price CAD$432.74 Regular Price CAD$737.37
In stock
SKU
SOU1011299
Manufacturer:
The Southbend SOU1011299 Range Thermostat W/Dial 3/16" X 11-5/8" KXP uses a remote bulb and capillary system to sense the commercial oven. It controls the heating circuit by turning electrical flow on and off based on the dial position and temperature input based on the temperature changes in the oven cavity to stabilize control operation. The sensing bulb is installed on the oven control panel and the sensing bulb is placed in the cooking chamber to monitor the temperature to ensure uniform sensing operation.
Dimensions
- Length: 11.525 In
- Width: 0.188 In
- Height: 2 In
- Weight: 0.8 lbs
Product Notes
- Thermostat,
- Kxp, Temp 175-500, Bulb 3/16" X 11-5/8"
- Cap 60", Mount 1
- Dial Kit # 22-1128 Off-550-200 Insert (Closest We Have)
- If Oem Knob Is Preffered, Use Ap# 1661140
- Southbend Oven All Co Prefix Ovens~
- X10A.
- Series: V, Vs, X, Xs Gas Ovens, 300 Double Ovens.
- Platinum Series (Units With P Prefix)
