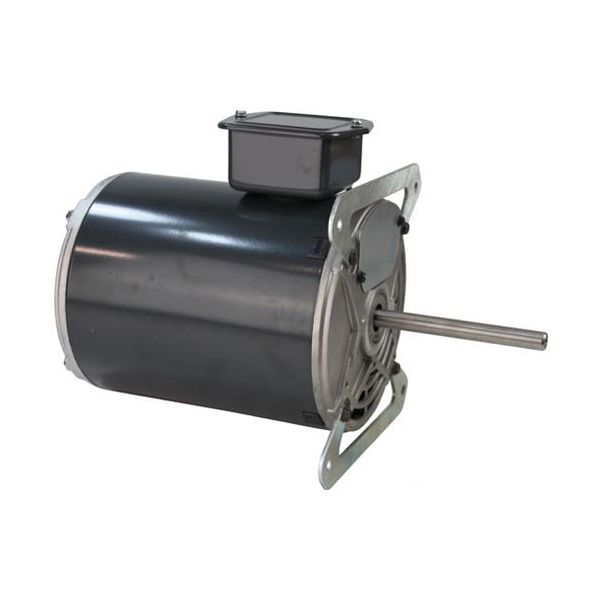

Southbend 1175571 CW Motor W/ 2 Flats 1-Pole 7.2/4.5AMP
Special Price CAD$1,003.83 Regular Price CAD$1,099.59
In stock
SKU
1175571
The Southbend 1175571 CW Motor 2 Flats is applied in commercial cooking equipment to supply power to rotating parts of the equipment, like conveyor belts and mixers. It works by transforming electrical energy into clockwise rotational movement, and the flats on the shaft are used to ensure the safe attachment of the driven elements. This motor would be attached to the mounting bracket of the equipment and would be attached to the control system to start and stop when necessary. It is applied in the normal operation to ensure that there is consistency of movement in the appliance.
Manufacturer:
Dimensions
- Length: 10.4 In
- Width: 8.15 In
- Height: 7 In
- Weight: 23 lbs
Product Notes
- [ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
- [7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
- Frame 56Z, 2 Speed.
- [ 1/2" X 4-1/2" Shaft W/ 2 Flats]
- White Common
- Black Power To Fan Switch - Hi
- Red Power To Fan Switch - Lo
- Blue/Purple Or Brown/Brown To Centrifugal Switch.
- If Oven Does Not Have Centrifugal Switch Then
- Wire Together W/ Wire Nut.
- If Only Using For One Speed, Then Wire Nut Red Wire.
- Southbend
- Oven Series:300,400,B,Bbb,Gb, Gs, Eh,P, Slgs
