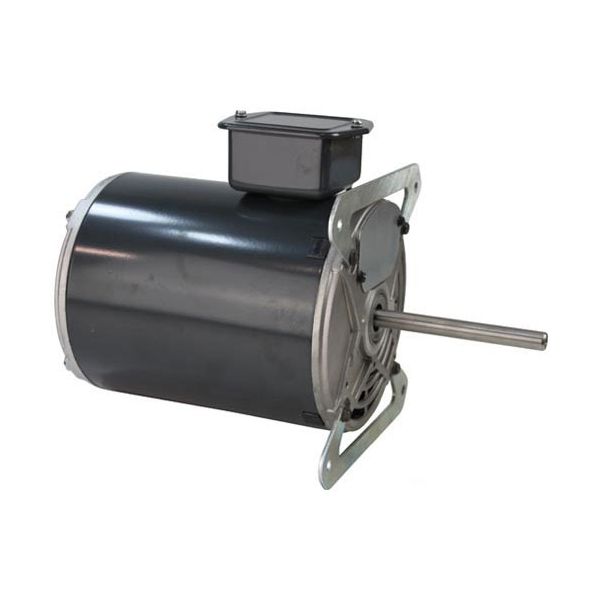

Southbend SOU1175567 Motor CW 1-Pole 7.2/4.5AMP
Special Price CAD$1,003.83 Regular Price CAD$1,099.59
In stock
SKU
SOU1175567
The Southbend SOU1175567 Motor CW 1-Pole 7.2/4.5AMP is a drives internal mechanical processes in compatible commercial cooking equipment. It is engineered to rotate clockwise and transform electrical power into the controlled movement to propel components that are connected. The motor is placed in the equipment housing and works as a component of the electrical and mechanical system of the appliance. It is commonly applied in commercial kitchen conditions and is used as a spare part to maintain normal functioning and equipment.
Manufacturer:
Dimensions
- Length: 10.4 In
- Width: 8.15 In
- Height: 7 In
- Weight: 23 lbs
Product Notes
- [ 115V, 50/60Hz ] [ .5/.25 Hp, ] [1P ] [1725/1140 RPM ]
- [7.2/4.5Amp ] [Cw Rotation From The Rear Of The Motor ]
- Frame 56Z, 2 Speed.
- [ 1/2" X 4-1/2" Shaft W/ 2 Flats]
- White Common
- Black Power To Fan Switch - Hi
- Red Power To Fan Switch - Lo
- Blue/Purple Or Brown/Brown To Centrifugal Switch.
- If Oven Does Not Have Centrifugal Switch Then
- Wire Together W/ Wire Nut.
- If Only Using For One Speed, Then Wire Nut Red Wire.
- Southbend
- Oven Series:300,400,B,Bbb,Gb, Gs, Eh,P, Slgs
