Scotsman 12-0739-02 Contactor W/Screw Terminals 3-Pole 25/35A 208/240V
Special Price CAD$130.71 Regular Price CAD$242.09
In stock
SKU
12-0739-02
Manufacturer:

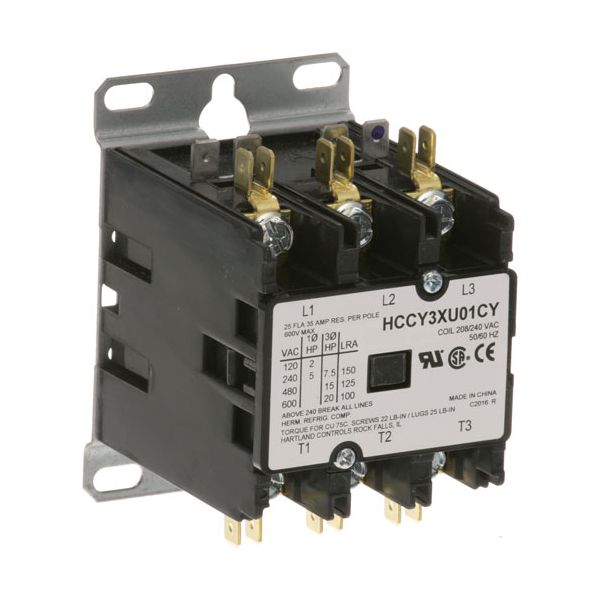

The Scotsman 12-0739-02 Contactor With Screw Terminals 25/35A 208/240V is a three-pole electrical switching component designed to control a high-current load within compatible commercial ice equipment. Its 25/35A current rating and 208/240V application identify the electrical capacity and circuit conditions for which the contactor is specified. When the control circuit energizes the coil, the internal contacts close simultaneously to supply power through the three switched poles removing the coil signal opens the contacts, and disconnects the load. The contactor works with the controller and connected motor, compressor, heater, or other electrical load according to the equipment circuit.
Dimensions
- Length: 4.625 In
- Width: 3 In
- Height: 3.375 In
- Weight: 1.1 lbs
Product Notes
- Contactor
- [ 3 Poles] [25/35 Amps] [208/240V ] [ Screw Terminals]]
- Was Furnas Contactor, Now Hartland.
- When Out Consider # 44-1071, 3P, 30/40A, 208/240V
- Cleveland Boiler, Hatco Boosters
- Scotsman Cm650, Cme1000A, Cme1002R, Cme1002W, Cme1202R,
- Cme650R, Cme855A, Cme865R, Cme865W, Cms1002R, Cms1002W,
- Cms1202R, Cms1402, Fm1200, Fm1200R, Fm1202, Fm1202R,
- Fm1500,Fm1500R, Fm2400, Fm2400R, Fm2402, Fm2402R, Fme1200,
- Fme1200R, Fme2400, Fme2400R, Mcm1062, Mcm1062R, Mcm1062W,
- Mcm1462R, Mcm860R, Nm1250, Nm1250R, Nm1850, Nm1850R,
- Nm1852,Nm1852R, Nm950, Nm950R, Nm952, Nm952R, Nme1850,
- Nme1850R,Nme950, Nme950R
