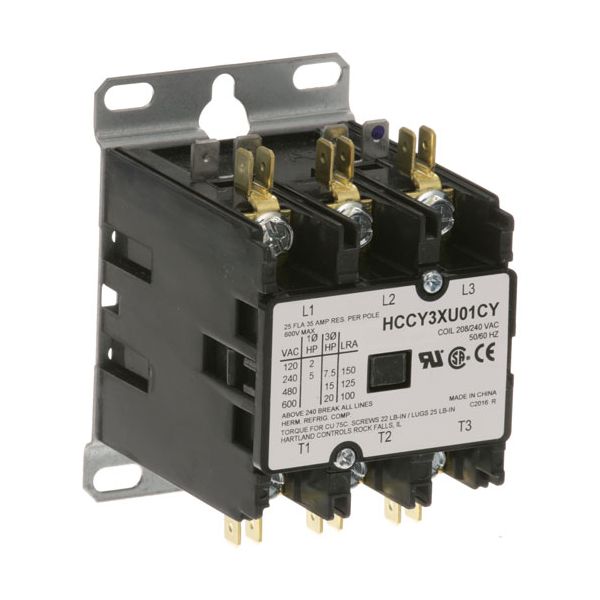

Pitco PTP5045358 Contactor W/Screw Terminals 3-Pole 25/35A 208/240V
Special Price CAD$130.71 Regular Price CAD$242.09
In stock
SKU
PTP5045358
Manufacturer:
The Pitco PTP5045358 Contactor With Screw Terminals 25/35A 208/240V electrical contactor is configured to switch three power circuits within compatible commercial kitchen equipment. Its 25/35A capacity and 208/240V application specify operating range for designated electrical load. An electrical command applied to coil moves contact mechanism into closed position, completing the power paths and allowing connected equipment component to operate. When the coil is de-energized, the contacts separate and stop current flow through switched circuit. The screw-terminal design provides accessible connection points for the equipment conductors and supports integration with the associated controller and load circuit.
Dimensions
- Length: 4.625 In
- Width: 3 In
- Height: 3.375 In
- Weight: 1.1 lbs
Product Notes
- Contactor
- [ 3 Poles] [25/35 Amps] [208/240V ] [ Screw Terminals]]
- Was Furnas Contactor, Now Hartland.
- When Out Consider # 44-1071, 3P, 30/40A, 208/240V
- Cleveland Boiler, Hatco Boosters
- Scotsman Cm650, Cme1000A, Cme1002R, Cme1002W, Cme1202R,
- Cme650R, Cme855A, Cme865R, Cme865W, Cms1002R, Cms1002W,
- Cms1202R, Cms1402, Fm1200, Fm1200R, Fm1202, Fm1202R,
- Fm1500,Fm1500R, Fm2400, Fm2400R, Fm2402, Fm2402R, Fme1200,
- Fme1200R, Fme2400, Fme2400R, Mcm1062, Mcm1062R, Mcm1062W,
- Mcm1462R, Mcm860R, Nm1250, Nm1250R, Nm1850, Nm1850R,
- Nm1852,Nm1852R, Nm950, Nm950R, Nm952, Nm952R, Nme1850,
- Nme1850R,Nme950, Nme950R
