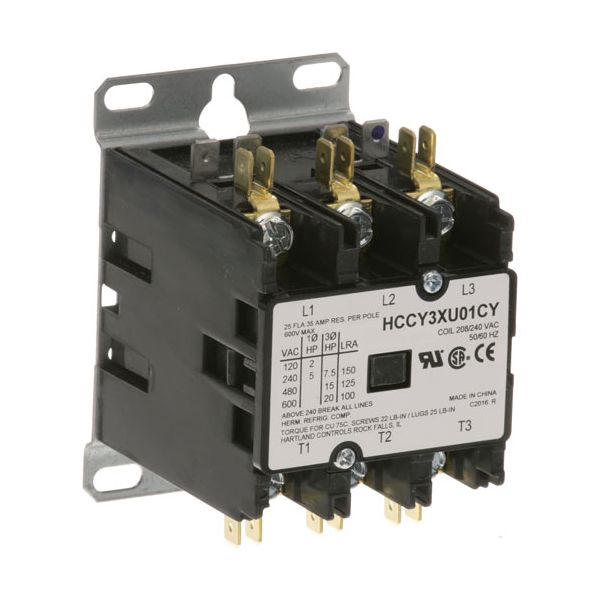

Scotsman 12-0739-11 Contactor W/Screw Terminals 3-Pole 25/35A 208/240V
Special Price CAD$130.71 Regular Price CAD$242.09
In stock
SKU
12-0739-11
Manufacturer:
The Scotsman 12-0739-11 Contactor With Screw Terminals 25/35A 208/240V is an electrical power-control component with three switched poles for managing compatible equipment loads. Its 25/35A rating specifies applicable current-handling range while 208/240V specification corresponds to designated supply circuit. A control signal applied to the coil actuates the contact mechanism, closing the three power paths so the connected load can operate. When the signal is removed, the contacts open and interrupt the circuit. The screw-terminal configuration provides connection points for the equipment conductors, allowing the contactor to interface with the control system and designated load.
Dimensions
- Length: 4.625 In
- Width: 3 In
- Height: 3.375 In
- Weight: 1.1 lbs
Product Notes
- Contactor
- [ 3 Poles] [25/35 Amps] [208/240V ] [ Screw Terminals]]
- Was Furnas Contactor, Now Hartland.
- When Out Consider # 44-1071, 3P, 30/40A, 208/240V
- Cleveland Boiler, Hatco Boosters
- Scotsman Cm650, Cme1000A, Cme1002R, Cme1002W, Cme1202R,
- Cme650R, Cme855A, Cme865R, Cme865W, Cms1002R, Cms1002W,
- Cms1202R, Cms1402, Fm1200, Fm1200R, Fm1202, Fm1202R,
- Fm1500,Fm1500R, Fm2400, Fm2400R, Fm2402, Fm2402R, Fme1200,
- Fme1200R, Fme2400, Fme2400R, Mcm1062, Mcm1062R, Mcm1062W,
- Mcm1462R, Mcm860R, Nm1250, Nm1250R, Nm1850, Nm1850R,
- Nm1852,Nm1852R, Nm950, Nm950R, Nm952, Nm952R, Nme1850,
- Nme1850R,Nme950, Nme950R
