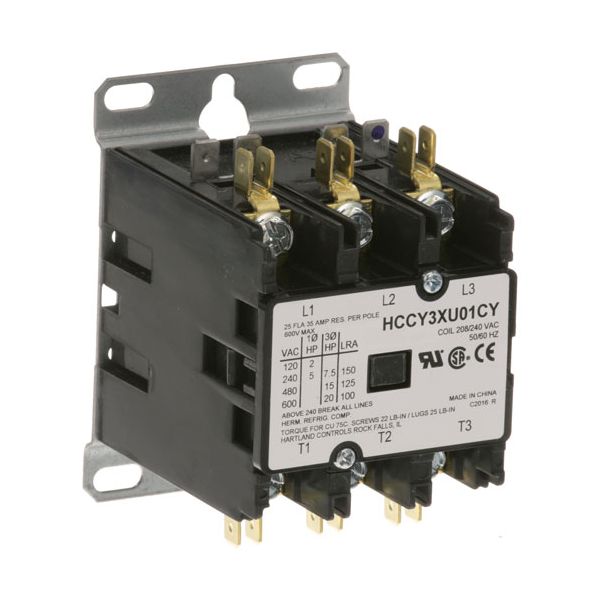

Scotsman 12-0739-06 Contactor W/Screw Terminals 3-Pole 25/35A 208/240V
Special Price CAD$130.71 Regular Price CAD$242.09
In stock
SKU
12-0739-06
Manufacturer:
The Scotsman 12-0739-06 Contactor With Screw Terminals 3-Pole 25/35A 208/240V is a switching component used to electrically control designated power loads in compatible commercial ice-making equipment. Rated for 25/35A and 208/240V applications, it provides the contact capacity needed for the connected equipment circuit. The electromagnetic coil responds to a control signal and moves internal contacts between open and closed positions allowing associated load to be energized or disconnected. Its screw terminals provide secure connection points for the incoming and outgoing conductors. The unit interfaces with the control wiring and connected electrical load as part of the machine's power-switching circuit.
Dimensions
- Length: 4.625 In
- Width: 3 In
- Height: 3.375 In
- Weight: 1.1 lbs
Product Notes
- Contactor
- [ 3 Poles] [25/35 Amps] [208/240V ] [ Screw Terminals]]
- Was Furnas Contactor, Now Hartland.
- When Out Consider # 44-1071, 3P, 30/40A, 208/240V
- Cleveland Boiler, Hatco Boosters
- Scotsman Cm650, Cme1000A, Cme1002R, Cme1002W, Cme1202R,
- Cme650R, Cme855A, Cme865R, Cme865W, Cms1002R, Cms1002W,
- Cms1202R, Cms1402, Fm1200, Fm1200R, Fm1202, Fm1202R,
- Fm1500,Fm1500R, Fm2400, Fm2400R, Fm2402, Fm2402R, Fme1200,
- Fme1200R, Fme2400, Fme2400R, Mcm1062, Mcm1062R, Mcm1062W,
- Mcm1462R, Mcm860R, Nm1250, Nm1250R, Nm1850, Nm1850R,
- Nm1852,Nm1852R, Nm950, Nm950R, Nm952, Nm952R, Nme1850,
- Nme1850R,Nme950, Nme950R
