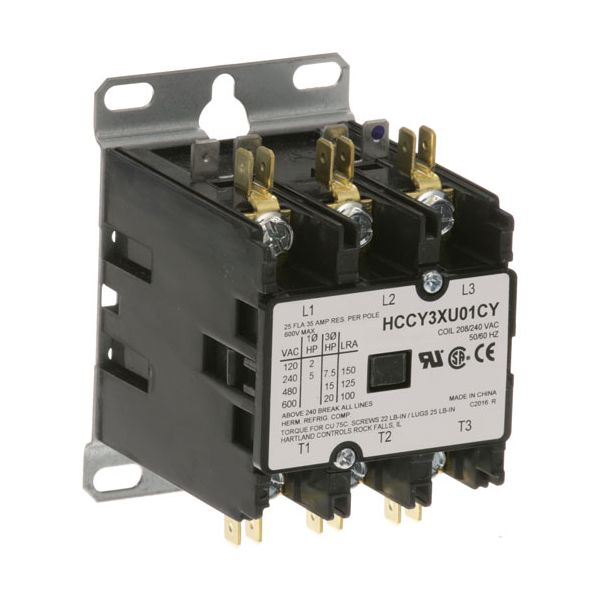

APW AS-1119522 Contactor W/Screw Terminals 3-Pole 25/35A 208/240V
Special Price CAD$130.71 Regular Price CAD$242.09
In stock
SKU
AS-1119522
Manufacturer:
The APW AS-1119522 Contactor With Screw Terminals 3-Pole 25/35A 208/240V is a power-control component used to switch designated electrical loads in compatible commercial kitchen equipment. With a 25/35A rating for 208/240V applications, it provides the contact capacity required for the specified power circuit. The electromagnetic coil responds to the equipment's control signal and actuates the contact mechanism, allowing power to pass through the three switched poles when energized. Once the control signal is removed, the contacts open and disconnect the load. Its screw terminals provide defined connection points for the incoming and outgoing conductors within the electrical assembly.
Dimensions
- Length: 4.625 In
- Width: 3 In
- Height: 3.375 In
- Weight: 1.1 lbs
Product Notes
- Contactor
- [ 3 Poles] [25/35 Amps] [208/240V ] [ Screw Terminals]]
- Was Furnas Contactor, Now Hartland.
- When Out Consider # 44-1071, 3P, 30/40A, 208/240V
- Cleveland Boiler, Hatco Boosters
- Scotsman Cm650, Cme1000A, Cme1002R, Cme1002W, Cme1202R,
- Cme650R, Cme855A, Cme865R, Cme865W, Cms1002R, Cms1002W,
- Cms1202R, Cms1402, Fm1200, Fm1200R, Fm1202, Fm1202R,
- Fm1500,Fm1500R, Fm2400, Fm2400R, Fm2402, Fm2402R, Fme1200,
- Fme1200R, Fme2400, Fme2400R, Mcm1062, Mcm1062R, Mcm1062W,
- Mcm1462R, Mcm860R, Nm1250, Nm1250R, Nm1850, Nm1850R,
- Nm1852,Nm1852R, Nm950, Nm950R, Nm952, Nm952R, Nme1850,
- Nme1850R,Nme950, Nme950R
