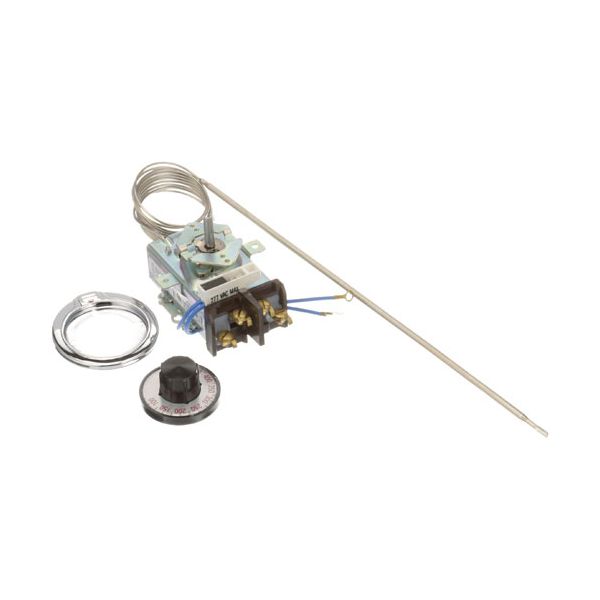

Hobart 00-347177-1 Thermostat W/Dial D1/D18 3/16 X 13 60
Special Price CAD$330.07 Regular Price CAD$444.57
In stock
SKU
00-347177-1
Manufacturer:
The Hobart 00-347177-1 Thermostat W/Dial D1/D18 3/16 X 13 60 is a temperature-regulating component designed for commercial food service equipment. It is installed within the systems control housing and is attached to the heating system and temperature sensing assembly. The thermostat operates in a manner that senses the internal temperature, and switches the heating circuit on or off to keep the operating temperature set on the dial. This is a part that supports ensuring proper temperature control throughout the day as the systems are used.
Dimensions
- Length: 13.75 In
- Width: 4.125 In
- Height: 3.5 In
- Weight: 1.84 lbs
Product Notes
- [ Type - D1/D18 ] [ Temp 100-450 ] [ Bulb 3/16" X 13"
- Tin/Zinc ] [ Cap 60" ] [ Mount W/ Front Ears ]
- 4 Terminal.
- [ Pilot Light, Dial & Bezel Included ]
- Pilot Light # 38-1068
- Dial A249, K-115, # 22-1004 Off-450-100
- Bezel A557, K-160, # 26-4088
- Vulcan Grill Series: Heg (Elec) Without "D" Suffix.
- (For Units With "D" Suffix Use E-121).
