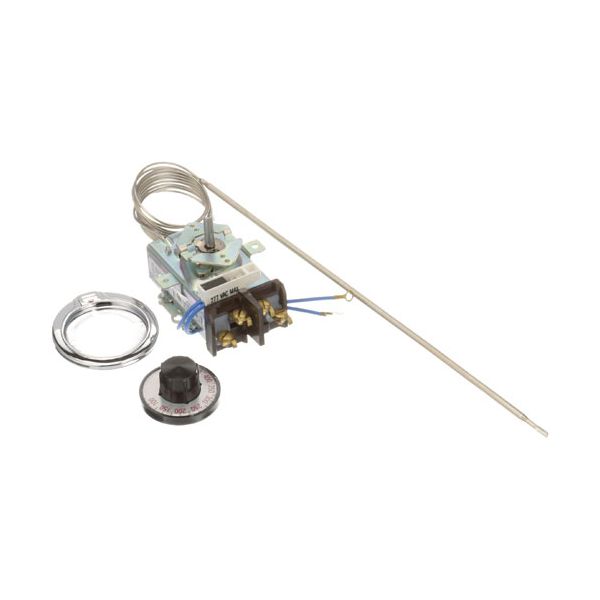

Hobart 00-804746 Thermostat W/Dial D1/D18 3/16 X 13 60
Special Price CAD$330.07 Regular Price CAD$444.57
In stock
SKU
00-804746
Manufacturer:
The Hobart 00-804746 Thermostat W/Dial D1/D18 3/16 X 13 60 is a control that is used in commercial cooking and warming equipment. It can be installed in the systems control panel area, which enables the operator to adjust and monitor the temperature during operation. The thermostat's operation is to detect changes in the internal temperature and to control the power to the heating system to keep the temperature stable. Its operation in the system is to aid in temperature control and to keep the systems performing in a consistent manner, when in use in a commercial kitchen.
Dimensions
- Length: 13.75 In
- Width: 4.125 In
- Height: 3.5 In
- Weight: 1.84 lbs
Product Notes
- [ Type - D1/D18 ] [ Temp 100-450 ] [ Bulb 3/16" X 13"
- Tin/Zinc ] [ Cap 60" ] [ Mount W/ Front Ears ]
- 4 Terminal.
- [ Pilot Light, Dial & Bezel Included ]
- Pilot Light # 38-1068
- Dial A249, K-115, # 22-1004 Off-450-100
- Bezel A557, K-160, # 26-4088
- Vulcan Grill Series: Heg (Elec) Without "D" Suffix.
- (For Units With "D" Suffix Use E-121).
