Hobart 347177-1 Thermostat W/Dial 3/16" X 13" 60" CAP D1/D18
Special Price CAD$330.07 Regular Price CAD$444.57
In stock
SKU
347177-1
Manufacturer:

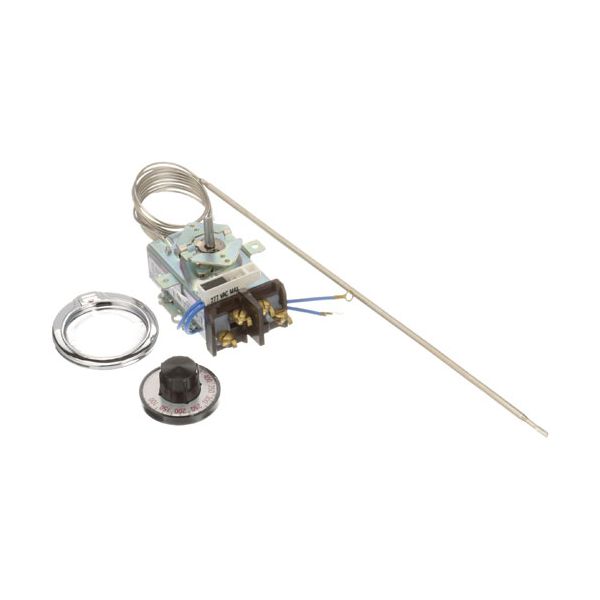

The Hobart 347177-1 Thermostat With Dial D1/D18 3/16" X 13" 60" Cap is a temperature controller that senses changes in heat through its capillary and translates them into mechanical action that opens or closes electrical contact. The dial can be adjusted manually to a desired temperature point which the internal mechanism will maintain by cycling connected components on and off. It is normally fitted in compatible commercial kitchen equipment control panel where it is connected to heating elements and monitoring systems to control internal temperatures during operation.
Dimensions
- Length: 13.75 In
- Width: 4.125 In
- Height: 3.5 In
- Weight: 1.84 lbs
Product Notes
- [ Type - D1/D18 ] [ Temp 100-450 ] [ Bulb 3/16" X 13"
- Tin/Zinc ] [ Cap 60" ] [ Mount W/ Front Ears ]
- 4 Terminal.
- [ Pilot Light, Dial & Bezel Included ]
- Pilot Light # 38-1068
- Dial A249, K-115, # 22-1004 Off-450-100
- Bezel A557, K-160, # 26-4088
- Vulcan Grill Series: Heg (Elec) Without "D" Suffix.
- (For Units With "D" Suffix Use E-121).
