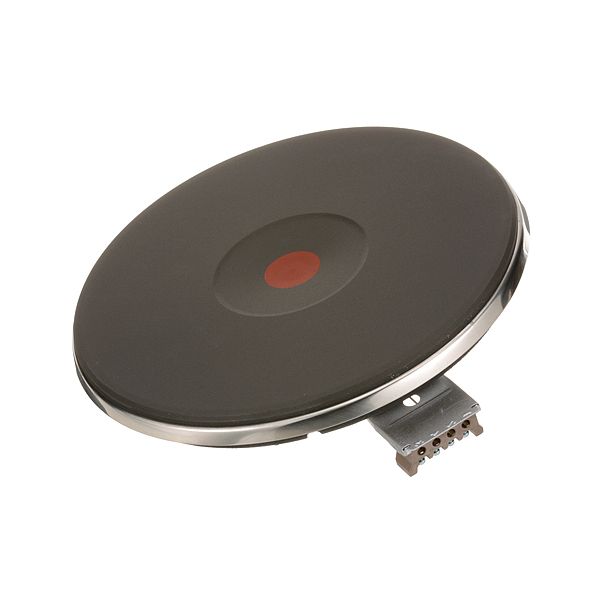

Hobart 00-354784-00002 French Plate Surface Heater W/4 Pin Terminals 9" DIA 2600W 240V
Special Price CAD$325.63 Regular Price CAD$536.05
In stock
SKU
00-354784-00002
Manufacturer:
The Hobart 00-354784-00002 French Plate Surface Heater is an electric heating element used in commercial cooking equipment. Installed in the range top opening, the 9-inch French plate contains an internal resistance heater rated at 2600 watts and 240 volts that converts electrical energy into conductive cooking heat. The heated cast surface transfers thermal energy directly to cookware placed on the plate while distributing heat across the cooking area. Connected through a four-pin terminal, the heater interfaces with the range wiring, power supply, and temperature control circuit to regulate heat output and support cooking operations on a solid-top electric range.
Dimensions
- Length: 9 In
- Width: 9 In
- Height: 2 In
- Weight: 8.1 lbs
Product Notes
- Solid Top Surface Heater, "French Plate"[ 240V 2600W ]
- [ 9.25" Dia.] [ Fits 8-3/4" Hole ][Terminals 4Ea Pin
- W/Screw, Bottom Has Centered Mounting Stud 1/4-20 Threads
- And Offset Pin.
- For Mouting Bracket Use # 26-2514
- Hobart Solid Range Top Units
- Toastmaster Solid Range Top
- Vulcan Range E24L, E36L, E48L, E60L, Vr3C, Vr4C, Vr6C, Vr7C
- Wells Hot Plate 501Fd, 501Ff, 502Fa, 502Fd, 502Ff, 502Fz
